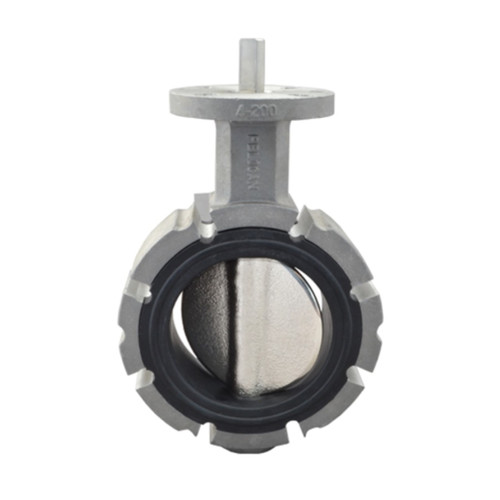

Pelican V-200-A-AL-SS-BN-04A-S 4 in. Aluminum Butterfly Valve w/ TTMA Slotted Bolt Pattern, SS Stem & Disc, No Handle, Black Nitrile Seat

Pelican V-200-A-AL-SS-BN-04A-S 4 in. Aluminum Butterfly Valve w/ TTMA Slotted Bolt Pattern, SS Stem & Disc, No Handle, Black Nitrile Seat

The Pelican V-200-A-AL-SS-BN-04AS Series 200 Butterfly Valve is designed for reliable flow control in tank truck, industrial, and fluid handling applications. Its one piece aluminum body combines strength with reduced weight, while the two piece stainless steel stem and disc construction provides dependable operation in demanding service environments. The low torque black nitrile rubber seat helps reduce operating effort and offers resistance to oil, fuel, and many common chemicals. A universal top plate accepts most standard actuators, eliminating the need for additional adapting flanges. Featuring a 4 in. size and TTMA slotted bolt pattern, this butterfly valve is well suited for systems requiring durable performance, straightforward actuator integration, and cost effective maintenance in applications where valve replacement may occur more frequently.

Features

• One Piece Aluminum Body: Provides a durable yet lightweight construction for demanding fluid transfer applications.
• Two Piece Stem and Disc Design: Delivers dependable operation and simplified maintenance.
• Stainless Steel Disc and Stem: Enhances durability and corrosion resistance in challenging environments.
• Low Torque Seat Design: Reduces operating effort while maintaining effective sealing performance.
• Black Nitrile Rubber Seat: Offers resistance to oil, fuel, and a wide range of common industrial chemicals.
• Universal Top Plate: Accepts most standard actuators without requiring an adapting flange.
• TTMA Slotted Bolt Pattern: Supports compatibility with applicable tank truck and transfer system installations.
• Handle Free Configuration: Allows actuator ready installation and application specific control options.

Specifications

• Body: Aluminum
• Body Flange OD: 6.775 in.
• Bolt Hole Circle: 5.875 in.
• Bolt Pattern: Slotted 4A TTMA
• Disc: Stainless Steel
• Disc Height: 4.015 in.
• Handle: Not Included
• Seat: Black Nitrile Rubber
• Series: 200
• Size: 4 in.
• Stem: Stainless Steel
• Stem Diameter: 0.438 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
