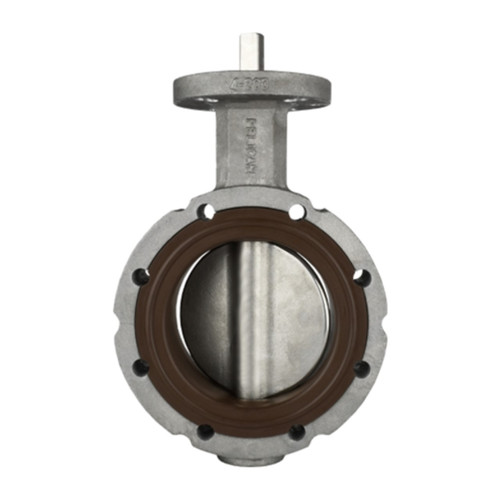

Pelican V-200-A-AL-SS-BV-04A 4 in. Aluminum Butterfly Valve w/ TTMA Bolt Pattern, SS Stem & Disc, No Handle, Brown FKM Seat

Pelican V-200-A-AL-SS-BV-04A 4 in. Aluminum Butterfly Valve w/ TTMA Bolt Pattern, SS Stem & Disc, No Handle, Brown FKM Seat

The Pelican V-200-A-AL-SS-BV-04A 200 Series Butterfly Valve is designed for dependable flow control in demanding transfer and processing applications. Its one-piece aluminum body combines strength with reduced weight, while the stainless steel disc and stem provide corrosion resistance and reliable performance. The low torque seat design promotes smooth operation, and the brown FKM seat offers compatibility with petroleum based products, fuels, lubricants, and a wide range of hydrocarbons. A universal top plate accepts most standard actuators, helping simplify installation and system integration. This 4 in. valve features a TTMA bolt pattern and is supplied without a handle, making it suitable for actuator-ready configurations and replacement valve assemblies.

Features

• Aluminum Body Construction: Provides a lightweight yet durable solution for industrial flow control applications.
• Brown FKM Seat: Offers resistance to fuels, petroleum oils, lubricants, and many hydrocarbon based fluids.
• Low Torque Design: Promotes smooth valve actuation and dependable operation.
• Stainless Steel Disc and Stem: Helps resist corrosion while maintaining long-term performance.
• TTMA Bolt Pattern: Supports compatibility with TTMA mounted systems and equipment.
• Universal Top Plate: Accepts most standard actuators without requiring a separate adapting flange.

Specifications

• Body: Aluminum
• Body Flange OD: 6.775 in.
• Bolt Hole Circle: 5.875 in.
• Bolt Pattern: TTMA
• Disc: Stainless Steel
• Disc Height: 4.015 in.
• Handle: Not Included
• Part Number: V-200-A-AL-SS-BV-04A
• Seat: Brown FKM
• Series: 200
• Size: 4 in.
• Stem: Stainless Steel
• Stem Diameter: 0.438 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
