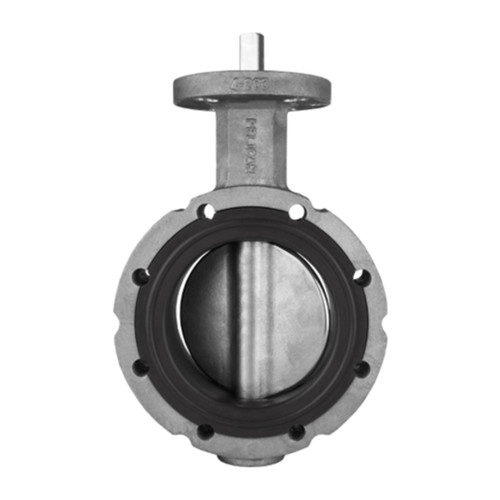

Pelican V-200-A-AL-SS-BN-04A 4 in. Aluminum Butterfly Valve Assembly w/ TTMA Bolt Pattern, SS Stem & Disc No Handle, Black Nitrile Seat

Pelican V-200-A-AL-SS-BN-04A 4 in. Aluminum Butterfly Valve Assembly w/ TTMA Bolt Pattern, SS Stem & Disc No Handle, Black Nitrile Seat

The Pelican V-200-A-AL-SS-BN-04A Series 200 Butterfly Valve Assembly is designed for dependable flow control in transfer, bulk handling, and industrial process applications. Its one piece aluminum body combines strength with reduced weight, while the two piece stainless steel disc and stem assembly provides reliable operation in demanding environments. The black Nitrile Rubber seat offers resistance to oils, fuels, and many common chemicals, making it well suited for a range of fluid handling systems. A universal top plate accepts most standard actuators, simplifying installation and future automation upgrades. The TTMA bolt pattern supports compatibility with common industry mounting requirements, and the low torque seat design helps maintain smooth valve operation. This valve is supplied without a handle, allowing customization based on specific operational needs.

Features

• One Piece Aluminum Body: Provides a lightweight yet durable construction for industrial service applications.
• Stainless Steel Disc and Stem: Enhances corrosion resistance and supports dependable long term performance.
• Low Torque Seat Design: Promotes smooth operation while reducing operating effort.
• Black Nitrile Rubber Seat: Offers resistance to oils, fuels, and various industrial chemicals.
• Universal Top Plate: Accepts most standard actuators without requiring a separate adapting flange.
• TTMA Bolt Pattern: Supports compatibility with industry standard mounting configurations.
• Handle Free Configuration: Allows actuator or control hardware selection based on application requirements.
• Two Piece Disc and Stem Design: Provides reliable valve operation in abrasive service environments.

Specifications

• Body: Aluminum
• Body Flange OD: 6.775 in.
• Bolt Hole Circle: 5.875 in.
• Bolt Pattern: TTMA
• Disc: Stainless Steel
• Disc Height: 4.015 in.
• Handle: Not Included
• Part Number: V-200-A-AL-SS-BN-04A
• Seat: Black Nitrile Rubber
• Series: 200
• Size: 4 in.
• Stem: Stainless Steel
• Stem Diameter: 0.438 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
