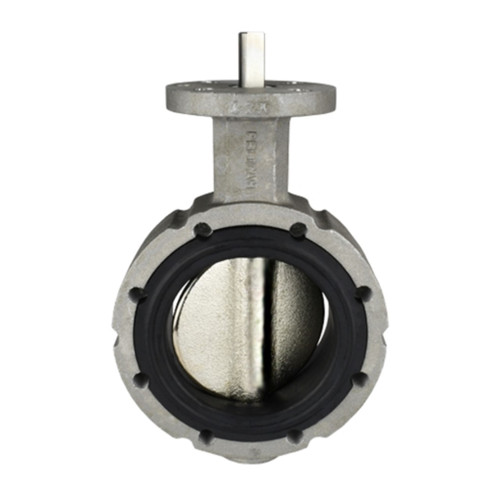

Pelican V-200-A-AL-DI-BN-04A 4 in. Aluminum Butterfly Valve w/ TTMA Bolt Pattern, No Handle, SS Stem & Iron Disc, Black Nitrile Seat

Pelican V-200-A-AL-DI-BN-04A 4 in. Aluminum Butterfly Valve w/ TTMA Bolt Pattern, No Handle, SS Stem & Iron Disc, Black Nitrile Seat

The Pelican V-200-A-AL-DI-BN-04A 200 Series Butterfly Valve is designed for dependable flow control in transfer, bulk handling, and industrial fluid applications. Its one piece aluminum body combined with a two piece stainless steel stem and ductile iron disc provides a practical balance of durability and serviceability, making it well suited for operations where valve maintenance and replacement may occur more frequently. The black Nitrile Rubber seat offers resistance to oil, fuel, and many common chemicals, while the low torque seat design promotes smooth operation. A universal top plate accommodates most standard actuators, eliminating the need for an adapter flange. This 4 in. valve features a TTMA bolt pattern and is supplied without a handle for applications utilizing automated or customized actuation systems.

Features

• One Piece Aluminum Body: Provides lightweight corrosion resistance and dependable performance in demanding service environments.
• Two Piece Stem Design: Stainless steel stem construction supports reliable operation and long service life.
• Ductile Iron Disc: Delivers strength and durability for consistent flow control.
• Low Torque Seat Design: Helps reduce operating effort while maintaining effective sealing performance.
• Black Nitrile Rubber Seat: Resistant to oil, fuel, and a variety of common industrial chemicals.
• Universal Top Plate: Accepts most standard actuators without requiring an adapting flange.
• TTMA Bolt Pattern: Supports compatibility with applicable tank truck and transfer system installations.
• Handle Not Included: Ideal for actuator-driven systems or custom actuation configurations.

Specifications

• Body: Aluminum
• Body Flange OD: 6.775 in.
• Bolt Hole Circle: 5.875 in.
• Disc: Ductile Iron
• Disc Height: 4.015 in.
• Handle: Not Included
• Part Number: V-200-A-AL-DI-BN-04A
• Seat: Black Nitrile Rubber
• Series: 200
• Size: 4 in.
• Stem: Stainless Steel
• Stem Diameter: 0.438 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
