Allsource 41800 Monster Industrial Abrasive Blast Cabinet 15 CFM

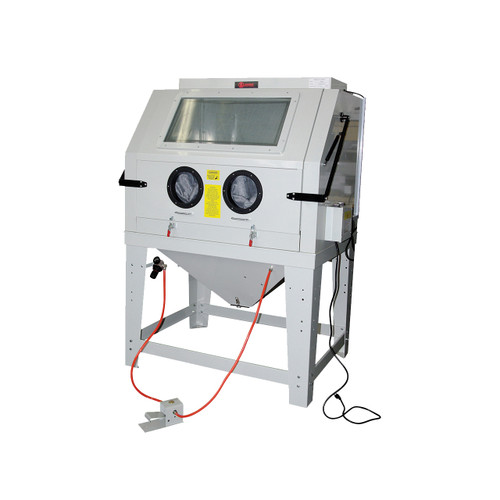

S&H Industries Allsource 41800 Monster Industrial Abrasive Blast Cabinet

This Allsource abrasive blast cabinet is a "Monster" with overall dimensions of 52 in. W x 70 in. H x 47 in. D. This cabinet is designed to be tough, constructed of heavy duty 14-ga steel with a grate capacity of 400 lbs. The low front loading design of this cabinet makes loading and unloading heavy items easier and safer. Inside work area of 46 in. W x 33 in. H x 34 in. D and a front door opening of 29 in. x 38 in. to accommodate a large variety of items. Includes foot pedal controlled gun with (2) 6 mm and (2) 7 mm ceramic blast nozzles, fluorescent light kit, air regulator, heavy duty 24 in. blast gloves, rear mounted 90 CFM dust collector, lighted power controls, protective window underlay and light underlay.

Features

• Heavy Duty Blast Gun
• Heavy Duty Blast Gloves
• Air Pressure Regulator
• 4 Blast Gun Nozzles
• 5 Extra Window & 5 Extra Light Underlayment Sheets
• 4 Fluorescent Lights provide a very bright work area
• Foot Pedal
• Large front door for easy loading
• Rear mounted Heavy duty 90 CFM dust collector improves visibility during blasting
• Rear mounted dust collector saves floor space
• Convenient foot pedal operation
• Large work area
• Heavy duty steel grate holds up to 400lbs
• Monster sized 443lbs
• Heavy duty 14 gauge steel has a resilient powder coated finish
• Gas charged hydraulic hinges provide smooth and easy opening and closing
• Power controls are lighted and within easy reach on side of cabinet
• Blast gun hook inside cabinet
• Assembly required

Specifications

• 5 - 20 CFM @ 80 PSI
• 80 - 110 Operating PSI
• 400 Lb. Grate Capacity
• Minimum abrasive capacity - 100 Lbs.
• Work Area - 35 in. High x 44 in. Wide x 34 in. Deep
• Main door opening - 29 in. x 38 in.
• Window dimensions - 30 in. x 15 in.
• Overall dimensions - 70 in. H x 52 in. W x 47 in.D
• Overall height with door open - 85 in. High
• Electrical requirements - 110 Volt, 60 HZ
• Replacement bulbs - 28 Watt, 35-3/4 in. Long

Downloads

Product Manual (PDF Download)
