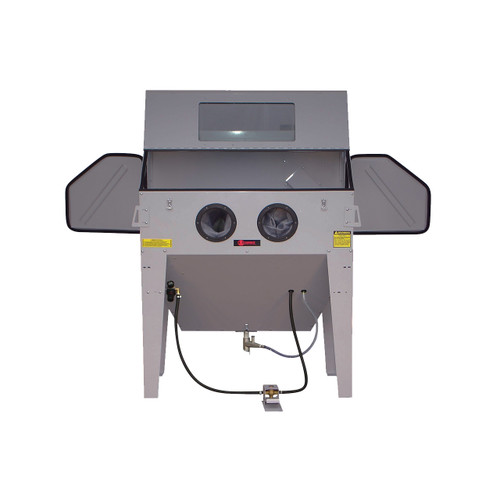

Allsource 41500 48 in. x 24 in. Abrasive Blast Cabinet Triple Door 15 CFM

Description

This Allsource abrasive blast cabinet is a durable 48 in. x 24 in. cabinet constructed of heavy duty 14-ga steel. The three-door design of this cabinet makes loading and unloading of heavy items easier, side doors offer lower loading height for heavier items. Inside work area of 48 in. W x 23 in. H x 24 in. D to accommodate a large variety of items, with side door access on both ends of the cabinet. Includes foot pedal-controlled gun with (2) 6 mm and (2) 7 mm ceramic blast nozzles, fluorescent light kit, air regulator, heavy duty 24 in. blast gloves, rear mounted 90 CFM dust collector, protective window underlay and light underlay. Full opening top door and 2 side doors.

Features

• Full width top door
• Two side doors
• Foot pedal
• Fluorescent light
• Rear mounted 90 CFM dust collector attached
• Pressure regulator
• Replaceable window underlays
• Includes 4 nozzles
• Assembly required

Specifications

• Work area - 48 in.W x 23 in.H x 24 in.D
• Main door opening - 15 in.x47 in.
• Shipping weight - 365 lbs.
• Grate capacity - 150 lbs.
• Side door opening - (2) @ 20 in.x22 in.
• Height with door open - 82 in.
• Operating PSI 80-110
• CFM @ 80 PSI - 15-20

Downloads

Product Manual (PDF Download)
