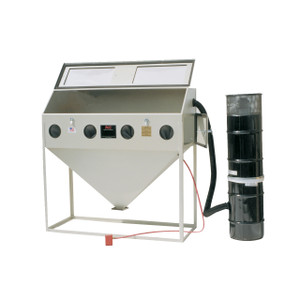

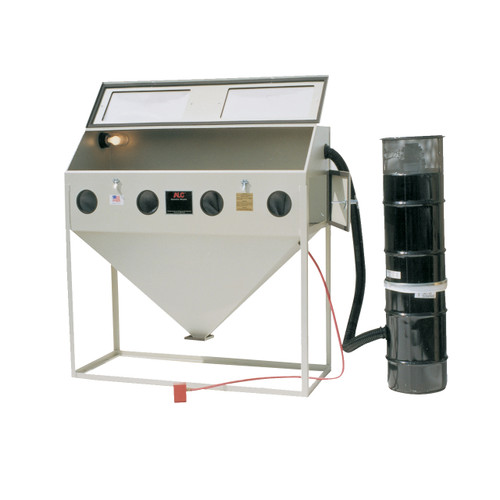

ALC 40413 Abrasive Blast Cabinet 60 in. x 40 in. Steel 15 CFM

Description

This ALC abrasive blast cabinet is a durable 60 in. x 24 in. steel blast cabinet constructed of 14-ga. steel with heavy duty angle iron legs. The fully-welded design means there are no seams to leak. Inside work area of 60 in. W x 24 in. H x 24 in. D to accommodate a large variety of items, with side door access. Includes foot pedal controlled gun with 1/4 in. nozzle , 150 watt light kit, high quality 24 in. lined gloves, 100 CFM dust collector and protective window underlay. Full opening top door and side door.

Features

• Perfect for surfaces preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult; ideal for removing paint, rust, scale and oxidation on various irregular surfaces
• 80 - 125 psi operating range, minimum air volume of 15 CFM @ 80 psi
• Fully welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet
• Two large viewing windows measuring 12 in. x 24 in. gives the operator a wide viewing area
• Oversized hinged top door opening of 13 in. x 59 in.  and hinged side door opening of 11 in. x 17 in. allows the operator to easily  load a wide variety of items into the blast cabinet
• Large inside work area of 60 in. W x 24 in. H x 24 in. D  allows the operator to easily maneuver bulky items inside the cabinet
• Heavy duty angle iron legs provide strength and a stable foot print
• 150 Watt max light kit and 112 CFM dust collector help the operator to maintain a good visual in heavy blasting operations
• Four armholes spanning the length of the cabinet allow the operator the versatility to work on longer items without moving the item
• Foot pedal controlled siphon blast gun helps to reduces operator hand fatigue
• Grate capacity of 200 lbs. allows the operator to blast heavier items such as cylinder heads

Specifications

• Work Area: 60 in.W x 24 in.H x 24 in.D
• Height: 60 in.
• Double Doors
• Top Door Opening: 13 in. x 59 in.
• Side Door Opening: 11 in. x 17 in.
• Foot Pedal Control
• Weight: 333
• Grate Capacity: 200#
