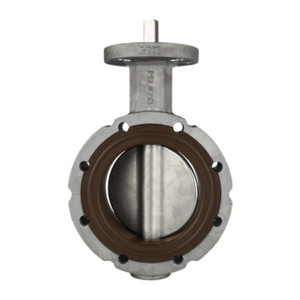

Pelican V-200-A-AL-SS-BV-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Disc, No Handle, Brown FKM Seat

Pelican V-200-A-AL-SS-BV-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Disc, No Handle, Brown FKM Seat

The Pelican V-200-A-AL-SS-BV-03 Butterfly Valve is designed for dependable flow control in pneumatic conveying, bulk material handling, and industrial processing applications. Built with a lightweight aluminum one piece body, this 200 Series valve features a stainless steel stem and stainless steel disc for durability and consistent operation in demanding environments. The brown FKM seat provides excellent resistance to petroleum oils, fuels, lubricants, hydrocarbons, ozone, and a wide range of industrial chemicals. Its low torque seat design helps reduce operating force, while the universal top plate accepts most standard actuators without requiring an adapter flange. This assembly is supplied without a handle, making it suitable for actuator equipped systems and custom control configurations.

Features

• One Piece Aluminum Body: Provides lightweight durability and reliable performance in industrial applications.
• Stainless Steel Disc and Stem: Offers corrosion resistance and dependable operation in demanding service conditions.
• Brown FKM Seat: Resists fuels, petroleum oils, lubricants, hydrocarbons, ozone, and many industrial chemicals.
• Low Torque Design: Reduces operating effort while maintaining effective sealing performance.
• Universal Top Plate: Accepts most standard actuators and helps simplify system integration.
• Two Piece Disc and Stem Assembly: Supports consistent valve function and straightforward maintenance.
• Actuator Ready Configuration: Shipped without a handle for automated or custom controlled installations.
• Abrasive Application Suitable: Economical valve design makes it well suited for applications with periodic replacement requirements.

Specifications

• Body: Aluminum
• Body Flange OD: 5.275 in.
• Bolt Hole Circle: 4.875 in.
• Disc: Stainless Steel
• Disc Height: 3.063 in.
• Handle: Not Included
• Seat: Brown FKM
• Series: 200
• Size: 3 in.
• Stem: Stainless Steel
• Stem Diameter: 0.375 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
