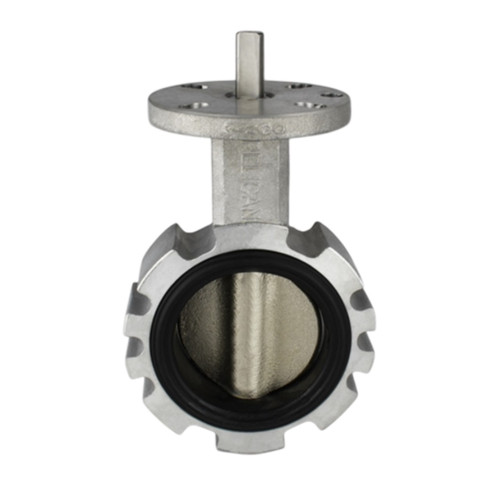

Pelican V-200-A-AL-SS-BE-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Disc, No Handle, Black EPDM Seat

Pelican V-200-A-AL-SS-BE-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Disc, Black EPDM Seat

The Pelican V-200-A-AL-SS-BE-03 Butterfly Valve is designed for reliable flow control in bulk material handling, pneumatic conveying, agricultural, and industrial applications. Built with a lightweight aluminum one piece body, this 200 Series valve features a stainless steel disc and stainless steel stem for dependable performance and corrosion resistance. The black EPDM seat provides excellent resistance to ozone, water, steam, alkalis, acids, salt solutions, and oxygenated solvents while maintaining a low torque operating design. A universal top plate accepts most standard actuators, simplifying installation and automation integration. This 3 in. butterfly valve is supplied without a handle, making it suitable for actuator ready applications where manual operation is not required.

Features

• Lightweight Aluminum Body: Reduces overall system weight while providing durable service in industrial environments.
• Stainless Steel Disc and Stem: Delivers dependable operation and enhanced resistance to corrosion and wear.
• Low Torque Seat Design: Helps minimize operating force for smoother valve actuation.
• Black EPDM Seat Material: Suitable for applications involving water, steam, ozone, alkalis, acids, and salt solutions.
• Universal Top Plate: Accepts most standard actuators without requiring an adapting flange.
• One Piece Body Construction: Offers a practical, cost effective solution for applications with routine valve replacement cycles.
• Actuator Ready Configuration: Supplied without a handle for automated valve control systems.
• Industrial Flow Control: Suitable for abrasive material handling and processing applications.

Specifications

• Body: Aluminum
• Body Flange OD: 5.275 in.
• Bolt Hole Circle: 4.875 in.
• Disc: Stainless Steel
• Disc Height: 3.063 in.
• Handle: Not Included
• Part Number: V-200-A-AL-SS-BE-03
• Seat: Black EPDM
• Series: 200
• Size: 3 in.
• Stem: Stainless Steel
• Stem Diameter: 0.375 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
