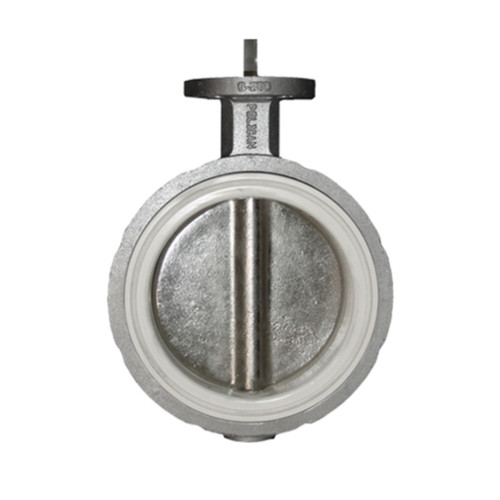

Pelican V-200-A-AL-DI-WN-06 6 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Disc, No Handle, White Nitrile Seat

Pelican V-200-A-AL-DI-WN-06 6 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Disc, No Handle, White Nitrile Seat

The Pelican V-200-A-AL-DI-WN-06 Series 200 Butterfly Valve is designed for dependable flow control in pneumatic conveying, bulk material handling, and industrial processing applications. Its one piece aluminum body combines lightweight construction with durability, while the two piece stainless steel stem and ductile iron disc provide reliable operation in demanding environments. The white Nitrile Rubber seat offers resistance to oil, fuel, and a variety of industrial chemicals, making this valve well suited for applications where chemical compatibility and consistent sealing performance are required. A universal top plate accepts most standard actuators, simplifying automation and installation requirements. This assembly is supplied without a handle, allowing flexibility for actuator driven systems or custom control configurations.

Features

• One Piece Aluminum Body: Provides a lightweight yet durable valve construction for industrial service.
• Two Piece Stem Design: Enhances operational reliability and supports consistent valve performance.
• Stainless Steel Stem: Offers corrosion resistance and dependable operation in demanding environments.
• Ductile Iron Disc: Delivers strength and durability for long term flow control applications.
• White Nitrile Rubber Seat: Resists oil, fuel, and various industrial chemicals while maintaining an effective seal.
• Low Torque Seat Design: Helps reduce operating effort and supports smooth valve actuation.
• Universal Top Plate: Accepts most standard actuators, reducing installation complexity.
• Handle Not Included: Allows integration with actuator controlled or customized operating systems.

Specifications

• Body: Aluminum
• Body Flange OD: 8.650 in.
• Bolt Hole Circle: 9 in.
• Disc: Ductile Iron
• Disc Height: 5.985 in.
• Handle: Not Included
• Part Number: V-200-A-AL-DI-WN-06
• Seat: White Nitrile Rubber
• Series: 200
• Size: 6 in.
• Stem: Stainless Steel
• Stem Diameter: 0.438 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Diameter: 0.375 in.
