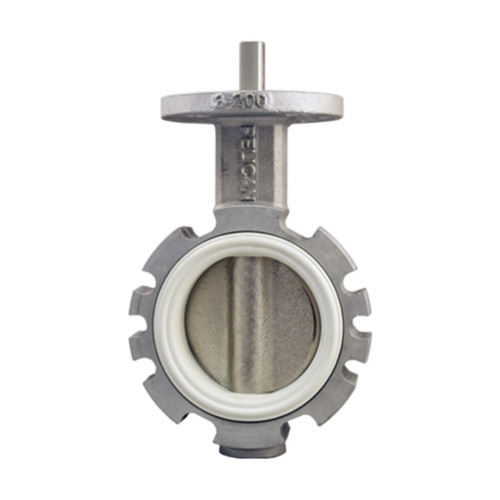

Pelican V-200-A-AL-DI-WN-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Boltless Disc, No Handle, White Nitrile Seat

Pelican V-200-A-AL-DI-WN-03 3 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Boltless Disc, No Handle, White Nitrile Seat

The Pelican V-200-A-AL-DI-WN-03 Series 200 Butterfly Valve is designed for dependable flow control in pneumatic conveying, bulk material handling, and other industrial applications. Its one piece aluminum body combines durability with reduced weight, while the ductile iron disc and stainless steel stem provide reliable operation in demanding environments. The low torque seat design helps maintain smooth actuation and consistent sealing performance. A universal top plate accepts most standard actuators, simplifying system integration and reducing installation complexity. This configuration features a white Nitrile Rubber seat that offers resistance to oil, fuel, and various chemicals. The valve is supplied without a handle, making it suitable for actuator driven installations.

Features

• One Piece Aluminum Body: Provides strength while reducing overall valve weight.
• Ductile Iron Disc Construction: Delivers dependable performance in abrasive material handling applications.
• Stainless Steel Stem: Supports reliable operation and long service life.
• Low Torque Seat Design: Helps reduce operating force for smoother actuation.
• Universal Top Plate: Accepts most standard actuators without requiring an adapting flange.
• White Nitrile Rubber Seat: Resistant to oil, fuel, and various industrial chemicals.
• Handle Free Configuration: Ideal for automated and actuator controlled systems.
• Two Piece Disc and Stem Design: Provides dependable performance in material flow applications.

Specifications

• Body: Aluminum
• Body Flange OD: 5.275 in.
• Bolt Hole Circle: 4.875 in.
• Disc: Ductile Iron
• Disc Height: 3.063 in.
• Handle: Not Included
• Part Number: V-200-A-AL-DI-WN-03
• Seat: White Nitrile Rubber
• Series: 200
• Size: 3 in.
• Stem: Stainless Steel
• Stem Diameter: 0.375 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
