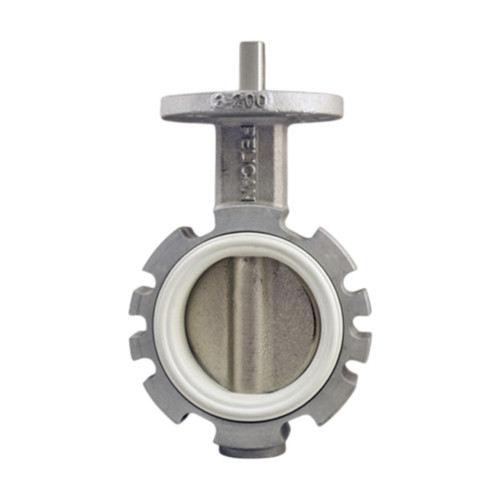

Pelican V-200-A-AL-DI-WN-02 2 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Disc, No Handle, White Nitrile Seat

Pelican V-200-A-AL-DI-WN-02 2 in. Aluminum Butterfly Valve w/ SS Stem & Ductile Iron Disc, No Handle, White Nitrile Seat

The Pelican V-200-A-AL-DI-WN-02 Butterfly Valve is designed for dependable flow control in bulk material handling, pneumatic conveying, and industrial processing applications. Built with a lightweight aluminum one piece body, this valve features a two piece stainless steel stem and ductile iron disc for reliable operation and durability in demanding environments. The white nitrile rubber seat provides resistance to oil, fuel, and various chemicals, making it suitable for a range of material transfer systems. A low torque seat design helps promote smooth valve actuation, while the universal top plate accepts many common actuators without requiring an adapter flange. This 2 in. butterfly valve is supplied without a handle, allowing actuator or control hardware selection based on application requirements.

Features

• One Piece Aluminum Body: Lightweight construction provides durability while reducing overall system weight.
• Two Piece Stem Design: Stainless steel stem offers dependable performance and long service life.
• Ductile Iron Disc: Delivers reliable strength for demanding industrial flow control applications.
• Low Torque Seat Design: Helps reduce operating effort and supports smooth valve actuation.
• Universal Top Plate: Compatible with many standard actuators without the need for an adapter flange.
• Chemical Resistant Seat: White nitrile rubber seat resists exposure to oil, fuel, and various chemicals.
• Handle Free Configuration: Allows flexibility when integrating manual or automated control systems.

Specifications

• Body: Aluminum
• Body Flange OD: 4.025 in.
• Disc: Ductile Iron
• Disc Height: 2.015 in.
• Handle: Not Included
• Part Number: V-200-A-AL-DI-WN-02
• Seat: White Nitrile Rubber
• Series: 200
• Size: 2 in.
• Stem: Stainless Steel
• Stem Diameter: 0.375 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
