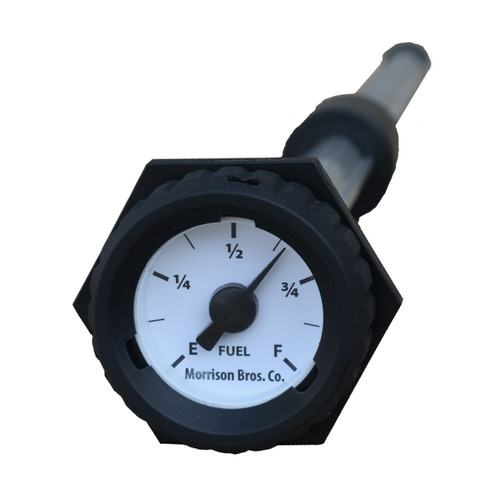

Morrison Bros. Corkscrew FIG 118 1 1/2 in. NPT Mechanical Level Gauge

Morrison Bros. Corkscrew FIG 118 1-1/2 in. NPT Mechanical Level Gauge

The 118 Mechanical Level "Corkscrew" Gauge is designed to monitor the liquid level in fuel, oil, and water tanks. Suitable for both stationary and mobile fuel tanks, as well as generator tanks, this gauge is built to withstand harsh environments, including marine applications. Its easy-to-read dial and robust construction ensure accurate level readings with minimal vapor loss, making it ideal for high-vibration settings.

Note: Gauge length should be 1/4 in. to 1/2 in. shorter than the tank depth.

Features

• Easy-to-Read Dial: Clear and simple reading for efficient monitoring
• Vapor Loss Restriction: Tight seal design prevents vapor from escaping
• Durable Construction: Built for harsh environments and high vibration applications, including marine use

Specifications

• Size: 1 1/2 in.
• Length: 7 1/4 in., 10 in., 11 3/4 in., 13 in., 15 in., 23 1/4 in., 24 in., 36 in., 40 in.
• Operating Temperature: -40°C to 60°C
• Protection Rating: IP67
• Materials:
  • Dial Body & Float: Engineered Plastic
  • O-ring: EPDM
  • Guide Rail: Aluminum
  • Shaft: Brass

Downloads

Specification Sheet (PDF Download)

Installation Instruction (PDF Download)
