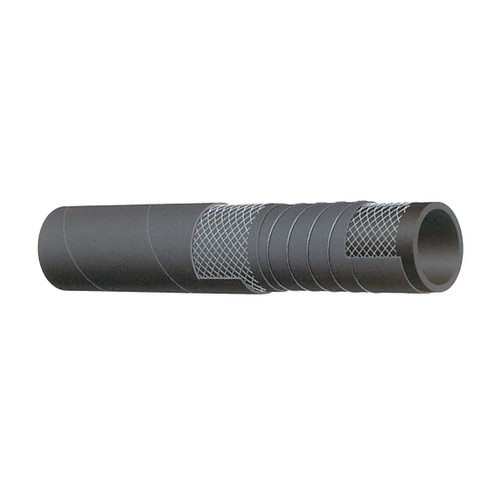

Kuriyama's Alfagomma T614AA is a suction and discharge hose that is constructed to transfer hot tar and asphalt. It is suitable for use with tank trucks, tank cars, and at bulk stations.
Temperature Range: -4 to 356°F (-20 to 180°C)
Note: Hose is priced by the foot.
Features
- Application: Hot tar and asphalt suction and discharge service
- Black NBR Tube: Hot tar and asphalt resistant
- Black CSM Cover: Abrasion, o-zone and hot tar resistant
- Reinforcement: High tensile textile cords with steel helix wire
Specifications
- Series: T614AA
- ID: 3 in. (76 mm.)
- OD: 3.78 in. (96 mm.)
- Wall Thickness: 10 mm.
- Length: Per ft.
- Cover: Black, CSM
- Tube: Black, NBR
- Maximum Working Pressure: 150 PSI (10 bar)
- Vacuum: 27 in. HG
- Minimum Bend Radius: 15 in.
- Temperature Range: -4 to 356°F (-20 to 180°C)
- Branding: Alfagomma - Italy T614 10 bar (150 PSI) Hot Tar and Asphalt (on red stripe)
- Weight: 2.69 lbs./ft.
Downloads
Technical Data (PDF Download)
Chemical Guide (PDF Download)
Care, Maintenance, & Storage (PDF Download)
