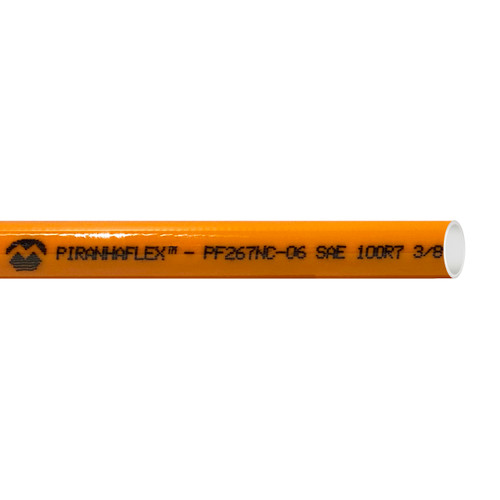

Kuriyama Piranhaflex PF267NC 3/8 in. Hydraulic Hose, 2250 PSI - Hose Only

Description

Piranaflex PF267NC Series hoses are designed for hydraulic oil and lubrication line applications on industrial equipment and vehicles, including construction, agriculture, and material handling machinery. The PF267NC Series is also suitable for aerial equipment, making it a versatile option for demanding hydraulic systems. Built for reliable fluid transfer, these hoses help support consistent performance in rugged working environments.

Features

• Slither® Cover - Slick, Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks.
• Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
• Lightweight - Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
• Pin Pricked Cover (PFP354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
• Maximum 140 ºF (+60 ºC) for water and phosphate-ester based hydraulic fluids

Specifications

• Brand: Kuriyama
• Part Number: PF267NC-06
• Weight: 0.12 lbs/ft
• Series: PF267NC
• ID Size: 3/8 in. (9.7 mm)
• OD Size: 0.651 in. (16.5 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 2250 PSI
• COLOR: Orange
• Tube Material: Copolyester
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided high tensile strength fibers
• Ends: No Ends - Hose only
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 2 in. (51.0 mm)
• Standards / Compliance: REACH, SAE 100R7, SAE J517
