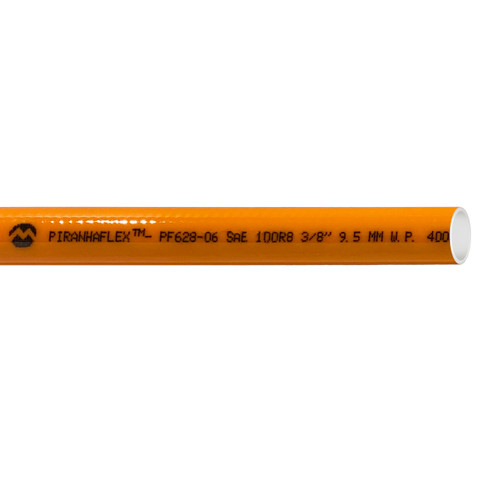

Name: Kuriyama Piranhaflex PF628NC 3/8 in. Hydraulic Hose, 4000 PSI - Hose Only
Brand: Kuriyama
SKU: KUPF628NC06
Price: 4.15 USD
Availability: InStock

Kuriyama Piranhaflex PF628NC 3/8 in. Hydraulic Hose, 4000 PSI - Hose Only

SKU:

KUPF628NC06

Manufacturer:

Kuriyama

Size:

3/8 in.

Temperature Range:

-65°F to +200°F (-54°C to 93°C)

Material:

Copolyester

Pressure:

4000 PSI

Ends:

Hose Only - No Ends

Length:

Per ft.

Weight:

0.10 LBS

$4.15

Description

Piranaflex PF628NC Series hoses are designed for high-pressure hydraulic applications, including hydraulic oil and lubrication lines. They are well-suited for industrial equipment and vehicles used in construction, agriculture, material handling, and other demanding environments. The PF628NC Series is also suitable for aerial equipment and hydraulic tool applications, making it a dependable choice for rugged hydraulic systems.

Features

Abrasion Resistant - Polyurethane cover outlasts rubber versionsin applications where the hose rubs against abrasive surfaces.
Lightweight - Approximately 37% lighter weight than similar rubberhoses.
Low Temperature Flex - Designed to flex at temperatures as low as-65°F; well suited for cold storage applications.

Specifications

Brand: Kuriyama
Part Number: PF628NC-06
Weight: 0.10 lbs/ft
Series: PF628NC
ID Size: 3/8 in. (9.7 mm)
OD Size: 0.63 in. (16.0 mm)
Length: Per Ft.
Service Temperature Range: -65Â°F to +200Â°F (-54Â°C to 93Â°C)
Working Pressure: 4000 PSI
COLOR: Orange
Tube Material: Copolyester
Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
Reinforcement Material: Braided aramid fibers
Ends: No Ends - Hose only
Compatible Fluids: Hydraulic Fluids, Petroleum
Min Bend Radius: 2 1/2 in. (64 mm)
Standards / Compliance: REACH, SAE 100R8, SAE J517
