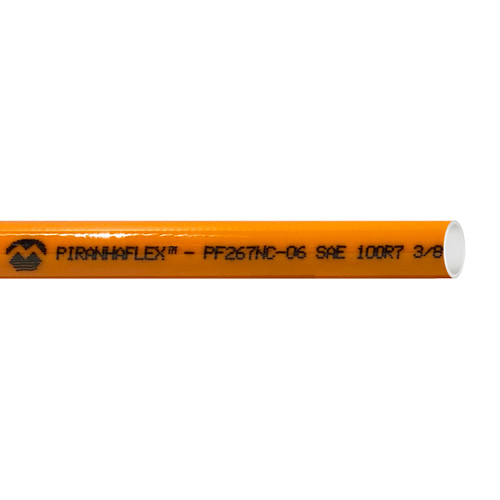

Kuriyama Piranhaflex PF267NC 1/4 in. Hydraulic Hose, 2750 PSI - Hose Only

Description

Piranaflex PF267NC Series hoses are designed for hydraulic oil and lubrication line applications on industrial equipment and vehicles, including construction, agriculture, and material handling machinery. The PF267NC Series is also suitable for aerial equipment, making it a versatile option for demanding hydraulic systems. Built for reliable fluid transfer, these hoses help support consistent performance in rugged working environments.

Features

• Kink Resistant Technology - Proprietary design shown to exhibit53% better resistance to kink initiation, and 16% less force to bend,versus competitive 100R7 hose in comparison testing.
• Abrasion Resistant - Polyurethane cover outlasts rubber versionsin applications where the hose rubs against abrasive surfaces.
• Low Temperature Flex - Designed to flex at temperatures as low as-65°F; well suited for cold storage applications.
• Meets ANSI A92.2 (PF267NC Series Only) - Meets ANSI insulatingrequirement for aerial devices used in areas of high electricity.Tested to less than 50 microamperes leakage when subjected to75,000 volts/ft. for 5 min.

Specifications

• Brand: Kuriyama
• Part Number: PF267NC-04
• Weight: 0.07 lbs/ft
• Series: PF267NC
• ID Size: 1/4 in. (6.4 mm)
• OD Size: 0.496 in. (12.6 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 2750 PSI
• COLOR: Orange
• Tube Material: Copolyester
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided high tensile strength fibers
• Ends: No Ends - Hose only
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 1 1/2 in. (38.0 mm)
• Standards / Compliance: ANSI 92.28 (vehicle mounted aerial devices), REACH, SAE 100R7, SAE J517
