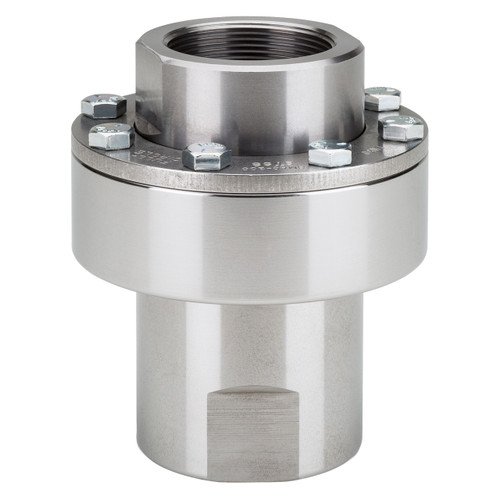

Full-Circle SMAC-200112STSSD / Straight Swivel 2 in. x 1 1/2 in. NPT for DEF

Description

The SMAC-200112STSSD is a premium stainless steel straight-through reducing swivel designed for Diesel Exhaust Fluid (DEF) transfer applications that require a reliable transition between different pipe sizes while maintaining unrestricted flow and smooth rotation. Featuring 2 in. FNPT x 1-1/2 in. FNPT connections, with the 1-1/2 in. connection serving as the rotating swivel side, it allows hoses and dispensing equipment to rotate freely, reducing hose twist, minimizing stress on connected components, and improving operator handling. Its patented SUPERSEAL mechanical seal incorporates a tri-directional floating seal package that continuously compensates for wear, vibration, temperature changes, and minor misalignment, while the sealed high-load ball bearing provides maintenance-free operation with no greasing or periodic lubrication required. Every swivel is individually pressure tested and inspected before shipment to verify dependable, leak-free performance. Manufactured from corrosion-resistant stainless steel with field-serviceable internal components, the SMAC-200112STSSD delivers the durability, reliability, and long service life required for demanding DEF transfer systems.

Features

• Straight-through reducing swivel
• 2 in. FNPT x 1 1/2 in. FNPT connections
• 1 1/2 in. side is the rotating swivel connection
• Unrestricted flow path
• Patented SUPERSEAL mechanical seal
• Maintenance-free sealed bearing
• Individually pressure tested
• Corrosion-resistant stainless steel
• Field-serviceable design
• Minimizes hose twist

Specifications

• Material: Stainless Steel
• Inlet: 2 in. FNPT
• Outlet: 1 1/2 in. FNPT Rotating Swivel
• Style: Straight

Downloads

Specification Sheet (PDF Download)

Warranty Information (PDF Download)
