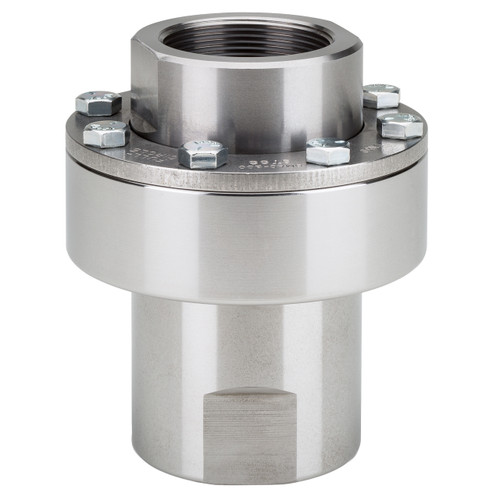

Full-Circle SMAC-112200STSSD / Straight Swivel 1 1/2 in. x 2 in. NPT for DEF

Description

The SMAC-112200STSSD is a premium stainless steel straight-through reducing swivel designed for Diesel Exhaust Fluid (DEF) transfer applications that require a reliable transition between different pipe sizes while maintaining unrestricted flow and smooth operation. Featuring 1-1/2 in. FNPT x 2 in. FNPT connections, with the 2 in. connection serving as the rotating swivel side, it allows hoses and dispensing equipment to rotate freely, reducing hose twist, minimizing stress on connected components, and improving operator handling. Its patented SUPERSEAL mechanical seal incorporates a tri-directional floating seal package that continuously compensates for wear, vibration, temperature changes, and minor misalignment, while the sealed high-load ball bearing provides maintenance-free operation with no greasing or periodic lubrication required. Every swivel is individually pressure tested and inspected before shipment to verify dependable, leak-free performance. Manufactured from corrosion-resistant stainless steel with field-serviceable internal components, the SMAC-112200STSSD delivers the long service life, reliability, and low maintenance expected in demanding DEF transfer systems.

Features

• Straight-through reducing swivel
• 1 1/2 in. FNPT x 2 in. FNPT connections
• 2 in. side is the rotating swivel connection
• Unrestricted flow design
• Patented SUPERSEAL technology
• Maintenance-free sealed bearing
• Pressure tested before shipment
• Stainless steel construction
• Field-serviceable components
• Minimizes hose twist
• Long service life

Specifications

• Material: Stainless Steel
• Inlet: 1 1/2 in. FNPT
• Outlet: 2 in. FNPT Rotating Swivel
• Style: Straight
