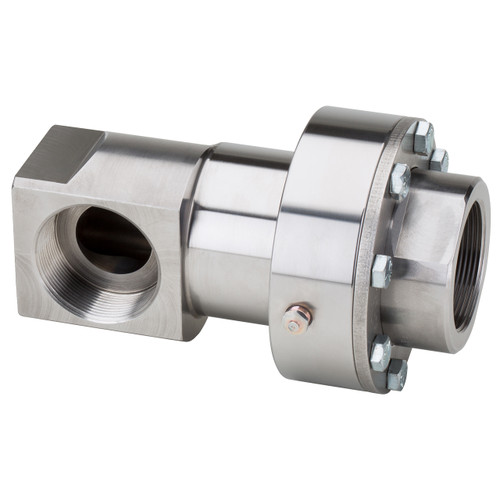

Full-Circle SMAC-200112SSD / 90 Degree Swivel 2 in. x 1 1/2 in. NPT for DEF

Description

The SMAC-200112SSD is a premium stainless steel 90° reducing swivel engineered for Diesel Exhaust Fluid (DEF) transfer applications that require a dependable transition between different pipe sizes while maintaining smooth operation and long service life. Featuring 2 in. FNPT x 1-1/2 in. FNPT connections, with the 1-1/2 in. connection serving as the rotating swivel side, the compact 90-degree configuration improves hose routing, reduces hose stress, and enhances flexibility in hose reel, bulkhead, and dispensing system installations. Its patented SUPERSEAL mechanical seal utilizes a tri-directional floating seal package that continuously compensates for wear, vibration, temperature changes, and minor misalignment, while the sealed high-load ball bearing provides effortless, maintenance-free rotation with no greasing or periodic lubrication required. Every swivel is individually pressure tested and inspected before shipment to ensure dependable, leak-free performance. Manufactured from corrosion-resistant stainless steel with field-serviceable internal components, the SMAC-200112SSD delivers the durability, reliability, and maintenance-free performance required for demanding DEF transfer applications.

Features

• 90° reducing swivel for DEF transfer
• 2 in. FNPT x 1 1/2 in. FNPT connections
• 1 1/2 in. side is the rotating swivel connection
• Patented SUPERSEAL seal technology
• Maintenance-free sealed ball bearing
• Reduces hose stress and improves routing
• Pressure tested for leak-free operation
• Stainless steel construction
• Field-serviceable components
• Long service life

Specifications

• Material: Stainless Steel
• Inlet: 2 in. FNPT
• Outlet: 1 1/2 in. FNPT Rotating Swivel
• Style: 90°
