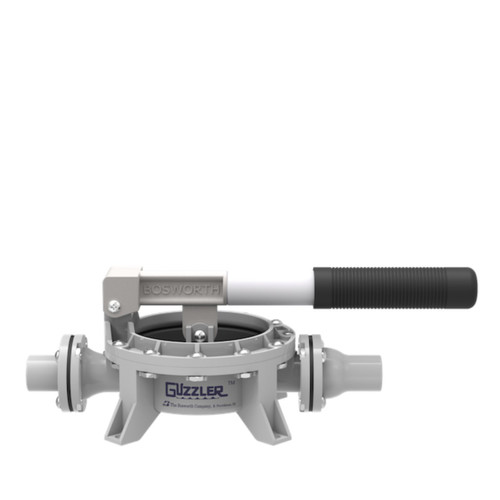

Bosworth GH-0400D Guzzler 3/4 in. MNPT Horizontal Hand Pump - Delrin

Bosworth GH-0400D Guzzler 3/4 in. MNPT Horizontal Hand Pump - Delrin Description

The Bosworth GH‑0400D Guzzler® Horizontal Hand Pump is a durable, manually operated diaphragm pump designed for reliable liquid transfer in marine, industrial, and utility applications. Constructed from lightweight acetal (Delrin®) plastic, this pump offers excellent corrosion resistance while maintaining strength and long service life. Delivering up to 10 gallons per minute at 90 strokes per minute, it supports efficient operation with hose sizes ranging from 1/2 inch to 1‑1/4 inch. The horizontal aluminum handle provides smooth up‑and‑down pumping action, and the adjustable clamp ring allows the handle to be positioned in twelve different orientations, making the pump well suited for variable installation requirements and confined spaces.

Features

• Durable Delrin® Construction: Lightweight acetal body provides corrosion resistance and dependable operation.
• High Manual Flow Rate: Pumps up to 10 GPM for efficient hand‑operated fluid transfer. Horizontal Aluminum Handle: Designed for smooth and controlled up‑and‑down pumping action.
• Adjustable Handle Orientation: Clamp ring allows twelve different handle positioning options.
• Versatile Installation Options: Compatible with multiple hose connection styles and sizes.
• Optional Durability Upgrades: Aluminum clamp ring options available for increased strength.

Specifications

• Body Material: Acetal (POM) Copolymer
• Clamp Ring Material: Acetal
• Diaphragm Material:  Nitrile
• Flow Rate: 10 GPM
• Handle Material: Aluminum
• Handle Style: Horizontal
• Head: 30 ft.
• Hose Connection Size: 3/4 in. MNPT (Inlet and Outlet)
• Internal Spring: None
• Lift: 12 ft.; 22 ft. With Check Valve
• Max Pressure: 15 psi
• Max Service Temperature: 212°F (100°C)
• Pump Type: Manual Diaphragm Hand Pump
• Valves: Flapper (Nitrile)
• Weight: 1.70 lb.

Downloads

Specifications Sheet (PDF Download)
