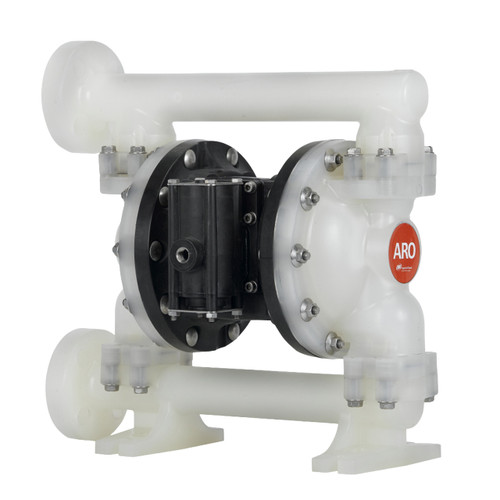

ARO PD10P-FPS-PAA EXP Diaphragm Pump 53 GPM 120 PSI 1 in. Polypropylene

Description

ARO EXP 1 in. non-metallic diaphragm pumps are a versatile solution for numerous applications. Our EXP 1 in. models achieve flow rates of up to 53 GPM (200.6 LPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and supply in Chemical, Industrial and Water/Wastewater treatment markets.

Features

• Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
• Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
• Versatility - Broad range in materials of construction for optimum fluid compatibility
• Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
• Serviceability - Easier service through modular design

Specifications

• Brand: ARO
• Series: EXP
• Manufacturer Part Number: PD10P-FPS-PAA
• Power Source: Air
• Assembly Type: Bolt
• Fluid Chamber Assembly Type: Bolted
• Housing Material: Polypropylene
• Diaphragm Base Material: Santoprene
• Diaphragm Reinforcement: Fabric Reinforced
• Check Valve Material: Santoprene
• Check Valve Type: Ball
• Check Seat Material: Polypropylene
• Max. Flow Rate: 53 gpm
• Max. Discharge Pressure: 120 psi
• Max. Feet of Head: 265 ft
• NPSHr: 38 ft of head
• Max. Solids Dia.: 0.13 in
• Max. Viscosity: 40,000 cps
• Min. Media Temperature: -40 °F
• Max. Media Temperature: 175 °F
• Displacement Per Stroke: 0.113 gal
• Max. Air Consumption: 50 scfm
• Max. Air Intake Pressure: 120 psi
• Fluid Intake Connection: 1 in Flange
• Fluid Discharge Connection: 1 in Flange
