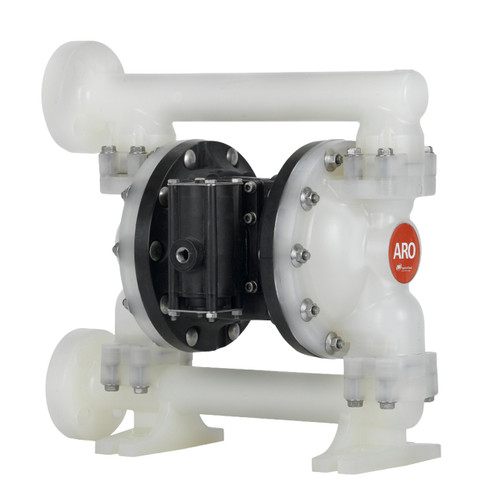

ARO PD05P-ARS-PAA-B Diaphragm Pump 15.2 GPM 100 PSI 1/2 in. Polypropylene

ARO PD05P-ARS-PAA-B Diaphragm Pump 15.2 GPM 100 PSI 1/2 in. Polypropylene

Part of ARO's Compact Series of pumps, the 1/2 in. compact pumps feature big performance in a small package. They offer flow rates up to 14.4 GPM (54.5 LPM) and a wide range of material and porting configurations.

Features

• Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
• Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
• Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
• Environmentally Sound - Bolted construction for leak-free fluid handling
• Serviceability - Ease of service through modular design

Specifications

• Brand: ARO
• Series: PD05P
• Manufacturer Part Number: PD05P-ARS-PAA-B
• Power Source: Air
• Assembly Type: Bolt
• Fluid Chamber Assembly Type: Bolted
• Housing Material: Polypropylene
• Diaphragm Base Material: Santoprene
• Diaphragm Reinforcement: Fabric Reinforced
• Check Valve Material: Santoprene
• Check Valve Type: Ball
• Check Seat Material: Polypropylene
• Max. Flow Rate: 15.2 gpm
• Max. Discharge Pressure: 100 psi
• Max. Feet of Head: 289 ft
• NPSHr: 35 ft of head
• Max. Solids Dia.: 0.09 in
• Max. Viscosity: 15,000 cps
• Min. Media Temperature: -40 °F
• Max. Media Temperature: 225 °F
• Max. Air Consumption: 20 scfm
• Max. Air Intake Pressure: 100 psi
• Fluid Intake Connection: 1/2 in NPT
• Fluid Discharge Connection: 1/2 in NPT
