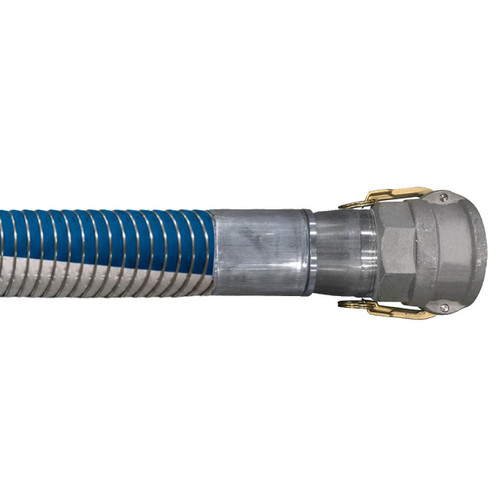

Willcox 2 in. Heavy Duty Polypropylene Composite Hose Type 4091SGP w/ Stainless Steel Female Coupler Ends

This heavy-duty polypropylene composite hose from Willcox is perfect for tank trucks, railcars, and plant transfer operations. This hose boasts an impressive temperature range of -22°F to +212°F (-30°C to +100°C), making it ideal for a wide range of chemical applications. Its high-grade polypropylene lining provides exceptional chemical resistance, ensuring prolonged life and durability. Additionally, the T316 stainless steel inner wire provides exceptional strength and corrosion resistance, guaranteeing smooth operation and extended lifespan. The hose comes in royal blue with white stripe, offering a visually appealing and readily identifiable solution.

Features

• Heavy-duty construction for durability and longevity
• Resistance to abrasion, ozone, and chemicals
• T316 stainless steel inner wire for maximum chemical resistance
• Electrical conductivity for ease of monitoring
• Temperature range of -22°F to +212°F for wide operating conditions

Specifications

• Inside Diameter: 2 in. (51 mm)
• Color: Royal Blue with white stripe
• Material: Polypropylene composites
• Licenses and Compliance Notes: EN13765:2010, IMO, IBC, BS5842, NAHAD-600:2005
• Temperature Range: -22°F to +212°F (-30°C to +100°C)
• Maximum Elongation: ≤10%
• Vacuum Range: 26 inHg (660 mmHg), 0.9 bar
• Electrical Properties: Electrically Conductive, ≤1.0 ohm/m for size 2 in. and above
• Weight: Approx. 1.4 lb/ft (2.1 kg/m)
• Carcass: Polypropylene fabrics, films, and seamless tubes
• Inner Wire: T316 Stainless Steel
• Outer Wire: Galvanized Steel
• Minimum Bend Radius: 7 in. (175 mm)
• Maximum Length: 100 ft (30 m)
