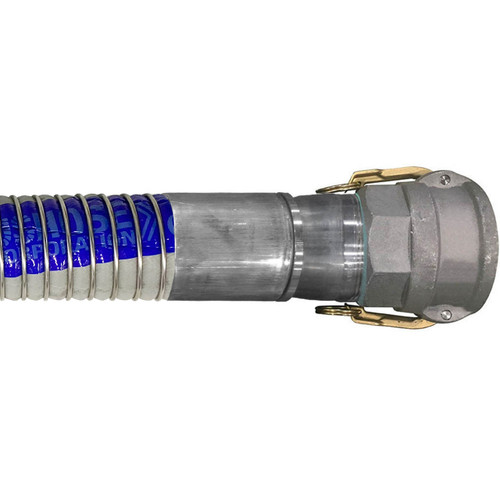

Willcox 2 in. Heavy Duty Polypropylene Chemical Hose Type 3094PSP w/ Stainless Steel Female Coupler Ends

The Willcox 3094 PSP composite hose is engineered for the safe and efficient transfer of corrosive acids and aggressive chemicals in demanding applications such as tank trucks, railcars, and plant transfers. Its robust construction features a polypropylene lining and a polypropylene-coated steel inner wire, ensuring exceptional chemical resistance and preventing permeation or leakage. Designed for heavy-duty service, this hose utilizes a T316 stainless steel outer wire for superior durability and protection against harsh environments. The 3094 PSP is electrically conductive, capable of handling full vacuum, and operates within a temperature range of -22°F to +212°F (-30°C to +100°C) with working pressures up to 250 psi (17 bar), making it an ideal choice for critical chemical handling needs.

Features

• Superior Chemical Resistance: Polypropylene lining prevents permeation and leakage from corrosive acids.
• Built for Toughness: Features a T316 stainless steel outer wire for exceptional durability in harsh environments.
• Safe & Versatile: Electrically conductive and capable of full vacuum, ensuring secure chemical transfers.

Specifications

• Temperature range: -22°F to +212°F (-30°C to +100°C)
• Maximum elongation: ≤10% on test pressure
• Vacuum range: 26 inHg (660 mmHg), 0.9 bar
• Electrical properties: Electrically conductive; ≤2.5 ohm/m for sizes less than 2 in.; ≤1.0 ohm/m for size 2 in. and above
• Min. Bend Radius: 7 in.
• Color/Cover: Gray PVC coated Nylon, Abrasion, UV and Ozone resistant
• Inner wire: Black Polypropylene coated steel wire
• Inner lining: High grade polypropylene
• Carcass: Polypropylene fabrics, films and seamless tubes
• Outer wire: T316 Stainless Steel
• Ends: Stainless Steel Female Coupler
• Standards: EN13765:2010, IMO, IBC, BS5842, NAHAD-600:2005
