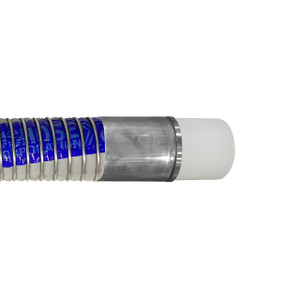

Willcox 1 in. Heavy Duty Fluoropolymer Chemical Hose Type 4124SSF w/ NPT Ends

The Willcox Heavy Duty Fluoropolymer Chemical Hose is designed for safe and reliable transfer of hazardous chemicals. Its inner lining, made of PTFE, provides superior chemical resistance against a wide range of aggressive liquids. This makes it suitable for applications in tank trucks, railcars, and industrial plants. The hose is built with a strong construction that includes a T316 stainless steel inner wire and a T316 stainless steel outer wire. It also features a PVC coated nylon cover that is resistant to abrasion and ozone.

Features

• Resistant to a wide range of chemicals
• Yellow stripe for visibility
• Abrasion and ozone resistant liner

Specifications

• Temperature range: -22°F to +212°F (-30°C to +100°C)
• Maximum elongation: ≤10% on test pressure
• Vacuum range: 26 inHg (660 mmHg), 0.9 bar
• Electrical properties: Electrically conductive; ≤2.5 ohm/m for sizes less than 2 in.; ≤1.0 ohm/m for size 2 in. and above
• Min. Bend Radius: 5 in.
• Color/Cover: Light Blue Yellow Stripe/PVC Coated Nylon, Abrasion, Ozone Resistant
• Inner wire: T316 Stainless Steel Wire
• Inner lining: PTFE
• Carcass: Polypropylene fabrics, films and seamless tubes
• Outer wire: T316 Stainless Steel
• Standards: EN13765:2010, IMO, IBC, BS5842, NAHAD-600:2005

Downloads

Product Literature (PDF Download)
