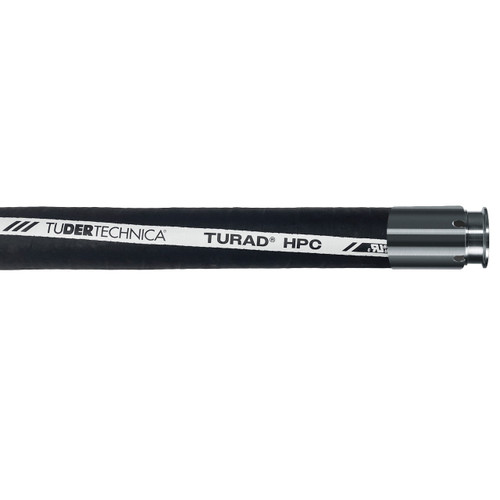

TuderTechnica Turad HPC 2 in. Data Center Cooling Hose Assemblies w/ Stainless Steel Tri-Clamp Ends, 150 PSI

Suction and Delivery Hose for Data Center Cooling

Description

Suction and delivery hose suitable for heat exchange solutions in data center cooling applications under the toughest conditions. The EPM tube does not contain heavy-metals as per RoHS specific requirements (2002/95/CE). EPM offers the optimal compatibility with PG25 and other deionized water glycol coolant mixes to avoid fluid contamination.

Features

• Tube: Smooth, EPM, white peroxide-cured, heat resistant.
• Temperature: -40°F / +248°F (-40°C / +120°C)
• Reinforcement: Synthetic plies, galvanized wire helices.
• Cover: Smooth, black cloth finish technopolymer, flame retardant. Abrasion, ageing, ozone and UV resistant. Cover compound meets UL 94:2023 (V-0) requirements.
• Norm: ISO 1307 for dimensional tolerances Cover compound meets UL 94:2023 (V-0) requirements, Hose meets UL 94:2023 (HB) requirements
• Marking: Available with blue or red layline, upon request.

Specifications

• Inside Diameter: 2 in. (51mm)
• Outside Diameter: 2.56 in. (65mm)
• Hose Ends: Tri-Clamp x Tri-Clamp
• Vacuum: 13 PSI (0.9 bar)
• Working Pressure: 150 PSI (10 bar)
• Burst Pressure: 600 PSI (40 bar)
• Appr. Weight: 1.33 lbs/ft. (1.98 kg/mt.)
• Bending Radius: 7.68 in. (195 mm)
• Standards / Compliance: ISO 1307, UL 94:2023 (V-0), UL 94:2023 (HB)

Downloads

Specification Sheet (PDF Download)
