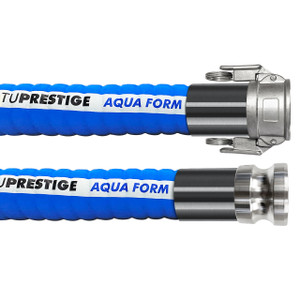

Tudertechnica Tuprestige Aqua 2 in. Water Delivery Hose Assemblies 250 PSI w/ Stainless Steel Tri-Clamp Ends

Description

Premium grade low permeation suction and delivery hose suitable for drinking water. Tested in compliance with NSF/ANSI/CAN 61 Drinking Water System Components. Meets FDA 21 CFR 177.2600.

Notes: Assembled with 2 in. stainless steel tri-clamp ends and ferrules. An economical option when 3A sanitary standards are not required. This assembly comes with 2 in. stainless steel tri-clamp ends.

Features

• IRR (Isobutylene Isoprene Rubber) Tube
• Reinforced with synthetic plies and galvanized wire helices
• Abrasion, ageing and ozone resistant cover
• Wide corrugated, blue, cloth finish cover

Specifications

• Series: Tuprestige
• Type: Low Permeation Suction and Delivery Hose
• Inside Diameter (ID): 2 in. (51 mm.)
• Outside Diameter (OD): 2.64 in. (67 mm.)
• Hose Ends: Tri-Clamp x Tri-Clamp
• Inner Tube: IRR (Isobutylene Isoprene Rubber), black, tested in compliance with NSF/ANSI/CAN 61 Drinking Water System Components. Meets FDA 21 CFR 177.2600.
• Outer Cover: Wide corrugated, blue, cloth finish.
• Reinforcement: Synthetic Plies, Galvanized Wire Helices
• Bend Radius: 3.94 in. (100 mm.)
• Vacuum: 13 PSI (0.9 bar)
• Working Pressure: 250 PSI (16 bar)
• Burst Pressure: 1000 PSI (64 bar)
• Operating Temperature Range: -40°F to +248°F (-40°C to +120°C)
• Fluid Compatibility: Water
• Norm: ISO 1307 for Dimensional Tolerances
• Weight: 1.28 lbs./ft. (1.90 kg/m.)

Downloads

Data Sheet (PDF Download)
