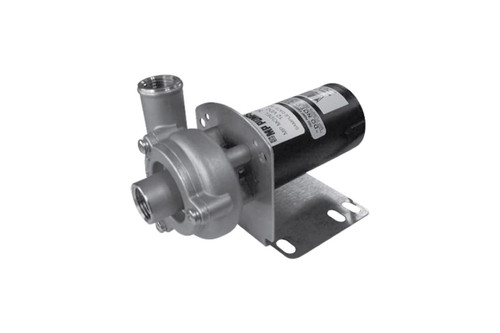

MP Pumps CFX 75 Series 12V DC 316 Stainless Steel Centrifugal Pump

MP Pumps
3/4 in.
28 GPM
9.50 LBS
Adding to cart… The item has been added

Model CFX 75 is a high performance 316 stainless steel centrifugal pump. The pump is ideal for marine, agricultural, commercial or industrial transfer applications of compatible fluids. The CFX 75 model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon/ceramic/viton bellows shaft seal is standard. Ports are 3/4” NPT. Marine ignition protected motors available. Pump rotation in 90 degree increments. Close coupled 12V DC motor.

Note: Not designed for petroleum use. Explosion proof motor not included.


  • Suction and Discharge Ports: 3/4" NPT x 3/4" NPT
  • O-Ring: Viton
  • Materials of Construction: 316 stainless steel
  • Flow: Up to 28 GPM
  • Max Working Pressure: 13.8 PSI
  • Head Feet: Up to 32'
  • Impeller
    • 316 stainless steel
    • Semi-open (sintered PM)
  • Motor: ISO 8846 motor available
  • Drive: Close coupled 12V DC
  • Seal
    • Carbon / ceramic / Viton bellows 150 PSI
    • Special seals upon request


  • Agricultural
  • Commercial
  • Industrial
  • Marine
  • OEM
  • Transportation


Installation Sheet (PDF Download)

Product Datasheet (PDF Download)
