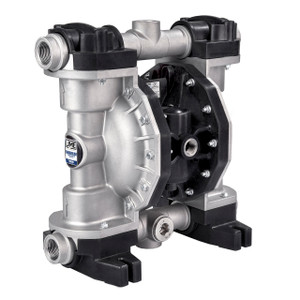

Lubeworks 1 in. Aluminum Air Operated Double Diaphragm Pump w/ Nitrile Diaphragm

Lubeworks 1 in. Aluminum Air Operated Double Diaphragm Pump Description

The Lubeworks 1 inch Air-Operated Double Diaphragm Pump is built from durable aluminum and delivers a reliable flow rate of 24 GPM (90.8 LPM). Versatile and efficient, this pump is well-suited for a wide range of industries, including petroleum, automotive, water treatment, mining, printing, and paper production.

Note: Not recommended for use in used oil applications.

Features

• High volume delivery even at low air pressure
• Externally serviceable air distribution system
• All bolted aluminum construction
• 5 year limited warranty

Specifications

• Type: Air-Operated Double Diaphragm Pump
• Item: PU201.03 (17151200)
• Inlet/Outlet: 1 in.
• Body: Aluminum
• Air Inlet: 1/4 in.
• Flow Rate: 24 GPM (90.8 LPM)
• Maximum Air Inlet Pressure: 115 PSI (8 Bar)
• Maximum Outlet Pressure: 115 PSI (8 Bar)
• Maximum Diameter Solid: 1/8 in.
• Maximum Head: 164 ft. (50 m.)
• Maximum Suction Height: 10 ft. (3 m.)
• Elastomer: Nitrile Rubber
• Ball Valve: PTFE
• O-Ring: Nitrile Rubber
• Compatible Fluids: Diesel, Grease, Kerosene, Oil
• Temperature Range:
• Nitrile: 0°F to 200°F (-17.6°C to 93.3°C)
• PTFE: 40°F to 220°F (4.4°C to 104.4°C)
• Package Dimensions: 11 in. x 8.7 in. x 13 in. (27 cm. x 22.1 cm. x 33 cm.)
• Weight: 22 lbs. (9.98 kgs.)

Note: Not recommended for use in used oil applications.

Downloads

Product Manual (PDF Download)
