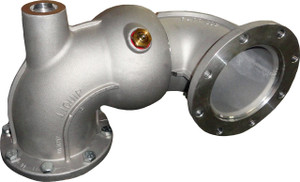

Liquip VNC-A4VG Coupler Swivel 4 in. TTMA Aluminum 145 PSI w/ Ball Handle

Description

Liquip offers 90° swivels with a handle that is maneuverable for use on the coupler end of bottom-loading arm.

The VNC series allows the loading API coupler to rotate 360° in the horizontal plane so that the APIs on both the truck and terminal end align correctly for a secure connection.

Suitable for: Bottom Load, Vapour Recovery

Features

• All aluminum construction.
• Ball and needle rolling elements for optimum axial and radial load bearing with minimum friction.
• Grease nipple on one side with relief valve mounted opposite for efficient removal of old grease and debris.
• Dual O-rings for product seal and dust seal respectively.

Specifications

• Handle: Ball-Type
• Mounting: Both ends are 4 in. (100mm) TTMA
• Design Pressure: 145 PSI (1,000 kPa)
• Test Pressure: 218 PSI (1,500 kPa)
• Operating Temperature: -40° to 200° F (-40° to 90° F)
• Seals: FKM GFLT grade O-rings
• Weight: 13lb (6.0kg)

Downloads

Installation Instruction (PDF Download)
