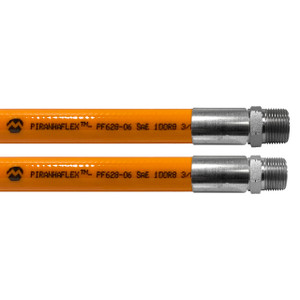

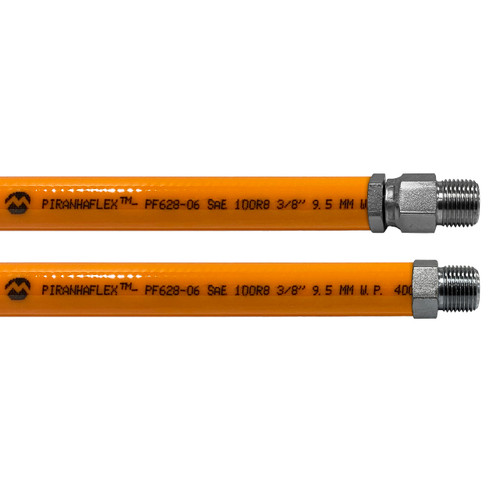

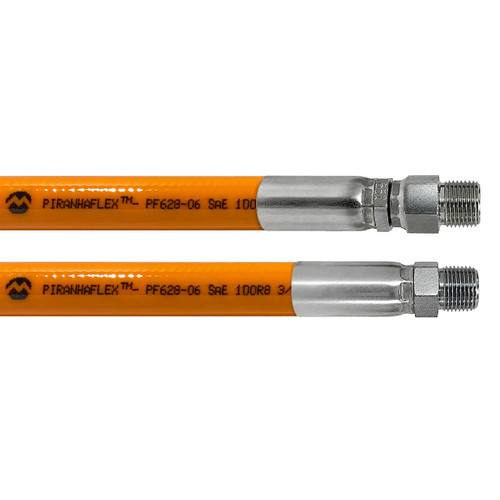

Kuriyama Piranhaflex PF628NC 1/4 in. Hydraulic Hose Assembly w/ Male NPT x Swivel Male NPT Ends

Kuriyama Piranhaflex PF628NC 1/4 in. Hydraulic Hose Assembly w/ Male NPT x Swivel Male NPT Ends Description

Piranhaflex PF628NC Series hoses are designed for high-pressure hydraulic applications, including hydraulic oil and lubrication lines. They are well-suited for industrial equipment and vehicles used in construction, agriculture, material handling, and other demanding environments. The PF628NC Series is also suitable for aerial equipment and hydraulic tool applications, making it a dependable choice for rugged hydraulic systems.

Assembled with Male NPT x Swivel Male NPT ends

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

Features

• Slither® Cover - Slick, Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks.
• Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
• Lightweight - Approximately 37% lighter weight than similar rubber hoses.
• Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
• Pin Pricked Cover (PFP354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.

Specifications

• Brand: Kuriyama
• Part Number: PF628NC-04
• Hose Only Weight: 0.07 lbs/ft
• Series: PF628NC
• ID Size: 1/4 in. (6.5 mm)
• OD Size: 0.485 in. (12.3 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 5000 PSI
• Color: Orange
• Tube Material: Copolyester
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided aramid fibers
• Ends: Male NPT x Swivel Male NPT
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 2 in. (50 mm)
• Standards / Compliance: ANSI 92.2 (vehicle mounted aerial devices), REACH, SAE 100R8, SAE J517
