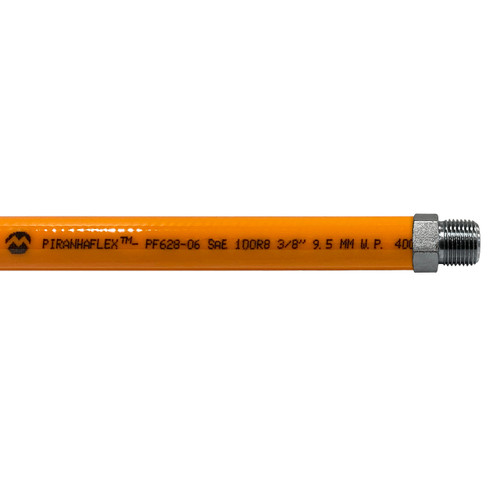

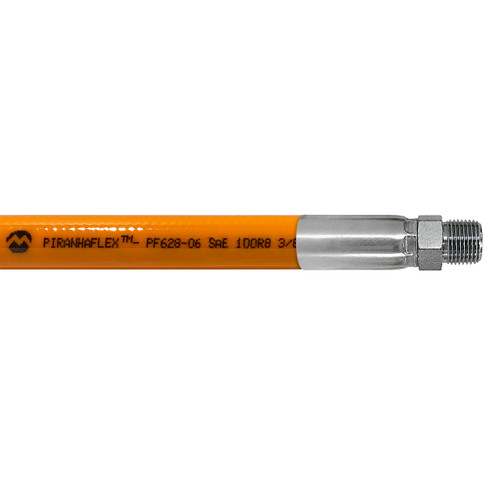

Description Piranaflex PF628NC Series hoses are designed for high-pressure hydraulic applications, including hydraulic oil and lubrication lines. They are well-suited for industrial equipment and vehicles used in construction, agriculture, material handling, and other demanding environments. The PF628NC Series is also suitable for aerial equipment and hydraulic tool applications, making it a dependable choice for rugged hydraulic systems..Assembled with Male NPT x Male NPT endsWe cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.. FeaturesAbrasion Resistant - Polyurethane cover outlasts rubber versionsin applications where the hose rubs against abrasive surfaces.Lightweight - Approximately 37% lighter weight than similar rubberhoses.Low Temperature Flex - Designed to flex at temperatures as low as-65°F; well suited for cold storage applications. Specifications Brand: Kuriyama Part Number: PF628NC-08 Hose Only Weight: 0.17 lbs/ft Series: PF628NC ID Size: 1/2 in. (12.9 mm) OD Size: 0.82 in. (20.8 mm) Length: Per Ft. Service Temperature Range: -65°F to +200°F (-54°C to 93°C) Working Pressure: 3500 PSI Color: Orange Tube Material: Copolyester Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane Reinforcement Material: Braided aramid fibers Ends: Male NPT x Male NPT Compatible Fluids: Hydraulic Fluids, Petroleum Min Bend Radius: 3 1/2 in. (89 mm) Standards / Compliance: ANSI 92.2 (vehicle mounted aerial devices), REACH, SAE 100R8, SAE J517 DownloadsSpecification Sheet (PDF Download) Product Literature (PDF Download)
