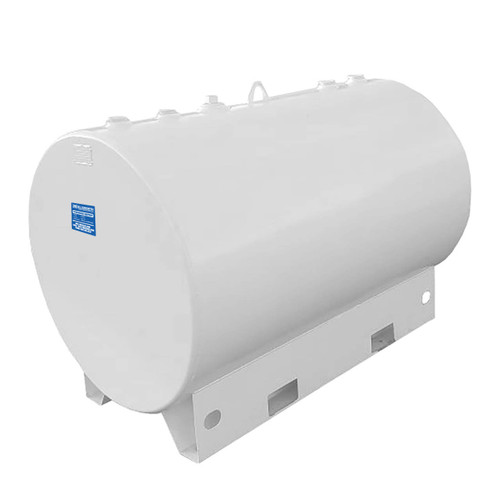

JME Tanks 12 Gauge Single Wall Non-UL Farm Tank - 550 Gallons

JME Tanks 12 Gauge Single Wall Non-UL Farm Tank - 550 Gallons Description

The 12 Gauge Single Wall Non‑UL Farm Tank – 550 Gallons is built for reliable on‑site storage in agricultural and general‑use environments where UL certification is not required. Constructed from durable 12‑gauge steel and designed as a non‑code tank, it offers practical functionality with multiple standard openings and an included drain hole, with optional no‑drain configuration upon request. Engineered using modern CAD software and welded by AWS‑certified professionals, this tank delivers dependable performance and structural integrity.

Finished with long‑lasting, weather‑resistant Sherwin‑Williams Polane White 8700 paint and supported by sturdy box‑type skid supports, it is designed for durability and stability in varied outdoor conditions. All materials and testing meet or exceed applicable quality standards, ensuring a strong and dependable solution for farm and storage applications.

Features

• Certified Tank Features: Includes weather‑resistant paint, durable construction, and materials that meet or exceed applicable codes.
• High‑Quality Finish: Coated with Sherwin‑Williams Polane 8700 paint for long‑term outdoor durability.
• Professional Fabrication: Built by AWS‑certified welders for enhanced strength and consistency.
• Robust Support Structure: Equipped with sturdy box‑type skid supports for stable placement.
• Advanced Engineering: Designed using modern CAD software for precision and reliability.
• Made in the USA: Manufactured domestically to high industry standards.

Specifications

• Capacity: 550 Gallons
• Tank Length: 72 in. (6 Ft.)
• Tank Diameter: 48 in. (4 ft.)
• Tank Height: 56 in.
• Construction: Single Wall
• Gauge: 12 Gauge Steel
• Paint Color: Polane White
• Dry Weight: 560 lbs.
• Operating Pressure: Atmospheric
• Material: Steel
• Supports: Skids Full Length
• Non‑UL (Non‑Code)
• No E-Vent

Tank Openings

• Fill Opening:(1) 2 in. 150# Weld Flange w/ Plastic Cap
• Pump Opening:(1) 2 in. 150# Weld Flange w/ Plastic Cap
• Gauge Opening:(1) 2 in. 150# Weld Flange w/ Plastic Cap
• Op Vent Opening:(1) 2 in. 150# Weld Flange w/ Plastic Cap
• Remote Level Gauge:(1) 2 in. 150# Weld Flange w/ Plastic Cap
• Tank Drain:(1) 1 in. 150# Weld Flange
