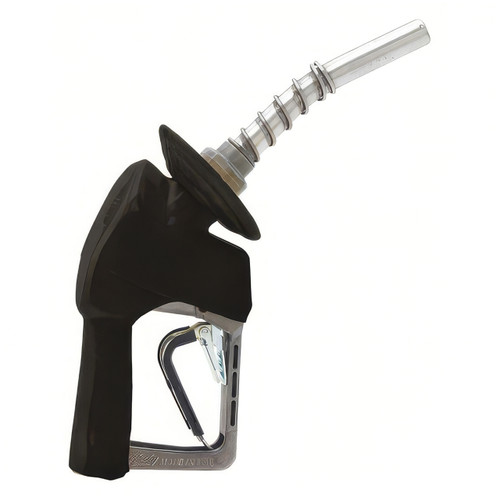

Husky XS Series EZ Lever 3/4 in. Light Duty Diesel PHG Nozzle w/ Three Notch Hold Open Clip - UL Listed, Black

Husky XS Series EZ Lever 3/4 in. Light Duty Diesel Polymer Handle Covered Nozzle w/ Three Notch Hold Open Clip - UL Listed, Black Description

Husky E159561 XS® Pressure Activated Automatic Shut-Off Light Duty Diesel Nozzle is used for full-service and self-service stations. The XS® unleaded nozzle has a 3/4 in. NPT Inlet and has pressure activated automatic shut-off with two notch hold open clip, mate guard, polymer handle cover, full grip guard and 001808 waffle splash guard. The stainless steel spout bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage. Husky XS® nozzle shuts off when the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or the leak detector has not completed its test cycle.

Features

• XS® nozzle shuts off-When the pump shuts off, gas tank is full, lever is open before the pump is turned on and if the leak detector has not completed the test cycle
• Nozzle is equipped with Flo-Stop® device-The nozzle shuts off or if it falls from the fill neck or raises above the horizontal
• Stainless steel spout-Has a reinforced stainless steel bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage
• StreamShaper®-Helps reduce turbulence for straighter fuel flow and less splash back spillage
• Tilt poppet-provides precise dispensing
• ADA compliant EZ Lever-reduces the force required to open the main poppet valve by 50%, lever operating force less than 5 lbs.

Specifications

• Series: XS
• Automatic Shut Off
• Size: 3/4 in. NPT Inlet
• Color: Black
• Flow-Rate: 15 GPM
• Spout: 15/16 in. OD
• Spout Length: 7 in.
• Max. Operating pressure: 25 PSI
• Temperature range: -20°F to 140°F
• 3 Latch positions
• Includes: 1808 waffle splash guard, mate guard, and polymer handle cover
• Color: Black
• Body: One-piece die cast aluminum
• Seals: Fluorocarbon
• Packing: Double O-ring seal protected by fiber reinforced Teflon®
• Lever: One-piece polymer
• Chemical compatibility: Biodiesel and Diesel
