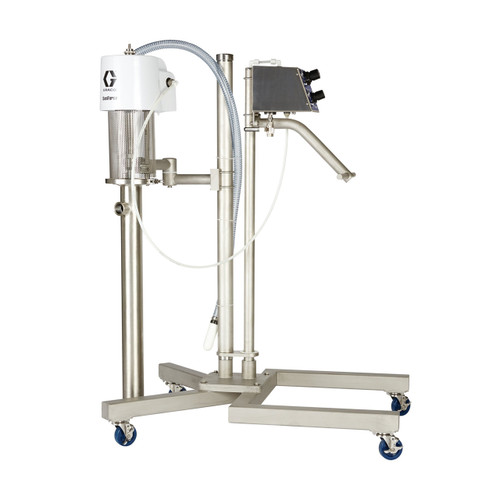

Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 5:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists
Features
- FDA-complaint
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Articulating arm allows for multiple containers to be unloaded from the same location
- Portable for easy storage
Specifications
- Air Inlet Size: 1/2 in.
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size: 2 in.
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Cart and Handle, Varied Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure: 100 PSI
- Maximum Air Pressure: 80 PSI
- Maximum Continuous Cycle Rate: 60 CPM
- Maximum Flow Rate: 14 GPM
- Maximum Intermittent Cycle Rate: 60 CPM
- Maximum Working Pressure: 400 PSI
- Number of Pieces: 3
- Output Per Cycle: 4.3 cycles/gal
- Pump Ratio: 5:1
- Seal Material: PTFE, FKM, UHMWPE
- Standards Met: FDA, CE
- Type: Elevator
- Wetted Material: Stainless Steel, Nitrile Rubber, UHMWPE, PTFE
Downloads
SaniForce Piston Pump Elevator Packages Instructions (PDF Download)
Product Manual (PDF Download)
