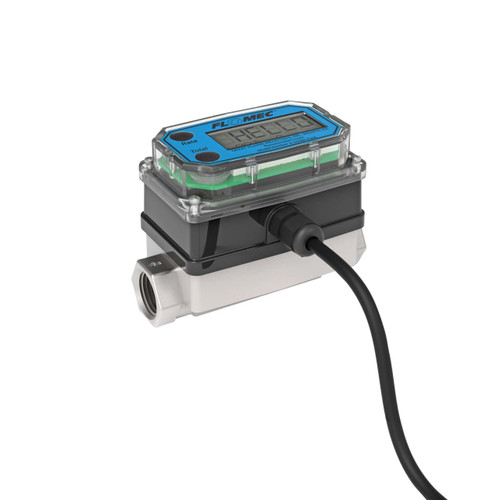

GPI Flomec® G2S-05-N-42 1/2 in. NPT Industrial Stainless Steel Turbine Flow Meter w/ LCD Display, Pulse Out, 4-20mA

GPI G2S-05-N-42 1/2 in. NPT Industrial Stainless Steel Turbine Flow Meter w/ LCD Display, Pulse Out, 4-20mA

The FLOMEC G2 Stainless Steel series with integrated pulse / 4-20 mA output offers a robust design for metering more demanding liquid flow, withstanding high-pressure and high-temperature applications. Designed with a corrosion-resistant stainless-steel body and factory 5-point calibration, this meter ensures accurate readings and extended durability. Its Q9 LCD display offers high visibility, while the modular design allows seamless integration of output modules, sensors, and remote display kits. Perfect for both industrial processes and fuel management, the G2 Series delivers performance you can trust.

Applications: Solvents, Water, Petroleum-based Chemicals

Features

• Clear Display: Easy to read high visibility Q9 LCD display
• Modular Connectivity: 4-20mA module and sensors for enhanced system integration
• Versatile Units: 11 pre-programmed engineering units plus 1 custom option for flexible measurement
• High Accuracy & Durability: Factory 5-point calibration and rugged, corrosion-resistant materials
• Easy Maintenance: Simple internal part replacement and non-volatile totals for continuous reliability

Specifications

• Size: 1/2 in. NPT (Female)
• Flow Range: 1 - 10 GPM (3.8-38 L/min)
• Accuracy: ±1.5%
• Technology: Turbine
• Pressure Rating: 1500 PSI (103 bar)
• Operating Temperature: 0° F to 185° F (-18° C to 85° C)
• Housing Material: Stainless Steel
• Wetted Materials: 316 Stainless Steel, Ceramic, PVDF, Tungsten Carbide
• Warranty: 2 Years
• Approvals: CE, IP65, NEMA 4, RoHS

Downloads

Product Manual (Turbine Housing) (PDF Download)

Product Manual (Q9) (PDF Download)

Product Manual (4-20mA) (PDF Download)
