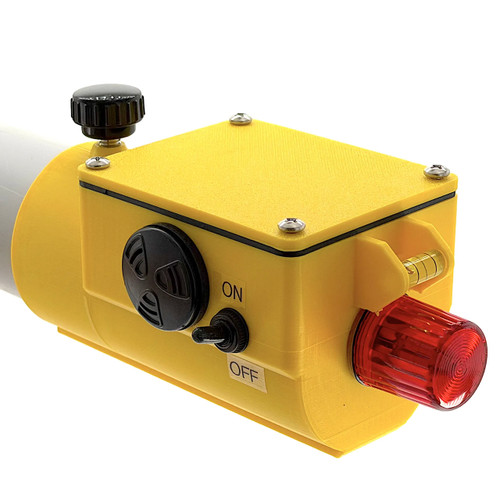

Gizmo Engineering AB-HB Alarm Box for Height Bar

Gizmo Engineering AB-HB Alarm Box for Height Bar

Gizmo Engineering's Height Clearance Bar Alarm (AB-HB) helps prevent costly damage to overhead assets from forklifts. This industry-leading solution is designed for vehicle height detection and parking garage safety. The height clearance bar alarm is meant to be installed quickly, preventing costly damage from accidental strikes, giving both audible and visual alerts to warn drivers before accidents happen. Shop the JME site for the best selection of Gizmo alarms today.

Features

• The alarm is easy to install without the use of tools.
• It is easily visible, as it is colored bright yellow.
• When the clearance bar is disturbed, a 110 dB siren goes off and a bright LED light flashes to alert drivers.
• A lithium battery included in the alarm consumes zero power unless the alarm is triggered, meaning it saves power until needed.
• The duration of the alarm can be adjusted from the default 10 seconds.

Specifications

• Weight: 10 oz.
• Shipping Dimensions: 7 in. x 4 in. x 4 in.
• Operating Temperature: -76°F to 140°F
• Enclosure Material: ABS
• Enclosure Screw Material: 316 Stainless Steel
• Enclosure Seal Material: TPU Elastomer
• Beacon Lens: Lexan
• Socket Diameter: 2 in.
• Thumbscrew Thread Material: 316 Stainless Steel
• Thumbscrew Knob Material: Phenolic resin
• Buzzer Volume: 110 dB @ 2 ft.
• Battery Type: Lithium Manganese Dioxide
• Ingress Protection: IP65
• Current Consumption During Alarm: 30mA
• Passive Current Consumption: 11µA

Downloads

Specification Sheet (PDF Download)

Chemical Resistance Guide (PDF Download)
