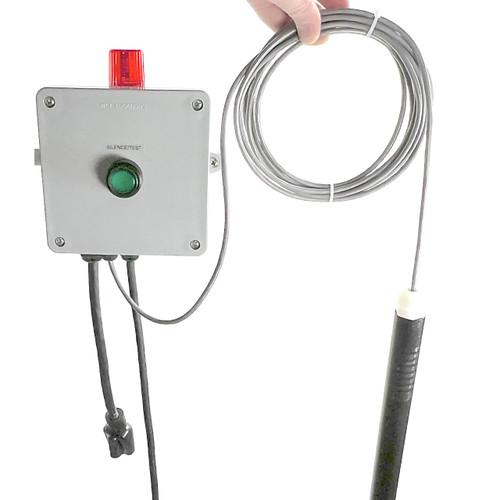

Gizmo Engineering AB-2-PF Alarm Box with Level PP Probe - 10 ft. Cable

Gizmo Engineering AB-2-PF Alarm Box with Level PP Probe - 10 ft. Cable

Gizmo Engineering's AB-2 Alarm Box with Level Probe (AB-2-PF) is a top-tier alarm with buzzer, LED light and a 10 ft. liquid probe cable. This alarm box uses the AB-2 alarm box and combines it with the 10 foot cable to help detect liquid levels. This product utilizes the same features as the AB-2 model. Shop the JME site for the best selection of Gizmo alarm boxes today.

Features

• The flashing beacon LED light is visible in daylight.
• Built for rugged, rough, wet and outdoor environments.
• The loud warbling tone cuts through the loudest of industrial noises.
• Each box alarm is waterproof.
• Has a snooze alarm, which repeats every 30 minutes.
• It is compact, so it is able to fit into small spaces.
• Has a 120V AC relay output.

Specifications

• Weight: 2.68 lbs.
• Shipping Dimensions: 16 in. x 6 in. x 4 in.
• Dimensions: 5 in. x 5 in. x 2 in.
• Operating Temperature: -76°F to 140°F
• Enclosure Material: PVC
• Enclosure Screw Material: 316 Stainless Steel
• Enclosure Seal Material: PVC Elastomer
• Beacon Lens: Lexan
• Cord Grip Material: Nylon
• Buzzer Diaphragm: 316 Stainless Steel
• Power Cord: 3C/14, SJOOW jacket
• Communications Cable Material: 8C/24, Shielded, PVC Jacket
• Communications Cable Size: 0.032 in.
• Buzzer Volume: 103 dB @ 2 ft.
• Ingress Protection: IP65
• Current Consumption During Alarm: 30mA
• Passive Current Consumption: 5mA
• Maximum Relay Current Load: 15A @ 120V AC
