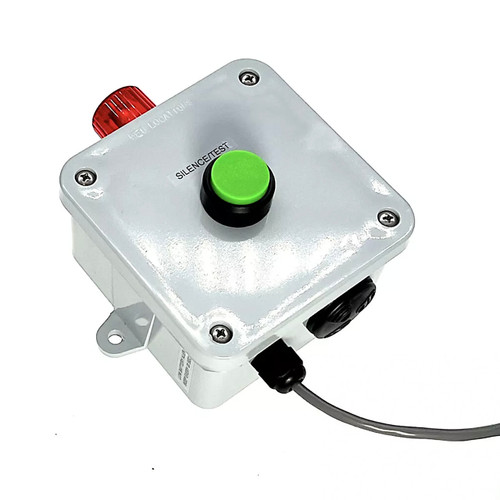

Gizmo Engineering AB-1 Alarm Box - Battery Powered

Gizmo Engineering's Battery Powered Alarm Box (AB-1) is an alarm panel box annunciator that takes a contact closure from sensing devices and turns the output into an audio and visual alarm. When an alarm is produced, a beacon will flash and the buzzer will sound. The buzzer can be silenced, but the light will continue to flash as a reminder. It is easy to install and uses uninterruptible battery power from the lithium battry supply. Shop the JME site for the best selection of Gizmo alarm boxes today.

Features

• The flashing beacon light is visible in daylight.
• It is always on duty because of the use of uninterruptible battery power.
• The loud warbling tone cuts through the loudest of industrial noises.
• Each box alarm is waterproof.
• The 9 volt circuit is safe and waterproof.
• It is compact, so it is able to fit into small spaces.
• The push of a button tests the circuits.

Specifications

• Weight: 1.3 lbs.
• Dimensions: 4 in. x 4 in. x 2 in.
• Shipping Dimensions: 6 in. x 6 in. x 4 in.
• Operating Temperature: -76°F to 140°F
• Enclosure Material: PVC
• Enclosure Screw Material: 316 Stainless Steel
• Enclosure Seal Material: PVC Elastomer
• Beacon Lens: Lexan
• Cord Grip Material: Nylon
• Buzzer Diaphragm: 316 Stainless Steel
• Communications Cable Material: 8C/24, Shielded, PVC Jacket
• Communications Cable Size: 0.032 in.
• Buzzer Volume: 103 dB @ 2 ft.
• Battery Type: Lithium Manganese Dioxide
• Ingress Protection: IP65
• Current Consumption During Alarm: 30mA
• Passive Current Consumption: 11µA

Downloads

Specification Sheet (PDF Download)
