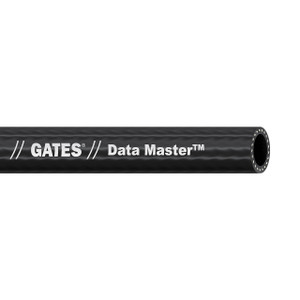

Gates 3/4 in. Data Master Data Center Coolant Hose

The Gates Data Master Data Center Cooling Hose is a high-performance fluid transfer hose specifically designed for the demanding cooling applications found in modern data centers. It features a robust design with a focus on durability, utilizing best-in-class compatible materials and offering superior flexibility for easy routing in complex configurations. This hose is engineered to efficiently circulate coolants, ensuring that critical IT hardware remains at optimal operating temperatures.

A key feature of the Gates Data Master hose is its zinc-free, peroxide-cured EPDM tube. This material ensures best-in-class compatibility with a wide range of coolant fluids, including PG25, while also preventing fluid contamination over time. The hose also boasts a flame-resistant cover that meets UL94V-0 and UL224 VW-1 standards, adding an extra layer of safety in data center environments. With its combination of durability, flexibility, and coolant compatibility, the Gates Data Master Data Center Cooling Hose is a reliable solution for maintaining optimal temperatures and performance in data center operations.

Features

• Metals-free peroxide cured EPDM tube to avoid fluid contamination over time
• Smaller outer diameter than competitors provides for easier installations in space-constrained environments
• Meets UL224 VW-1 and UL94V-0 Standards for flame resistance
• Built for a wide range of coolant mixes, including PG25
• Excellent ozone resistance to cover degradation from electronics

Specifications

• Hose OD: 1.02 in. (26.1mm)
• Maximum Working Pressure: 300 psi (2.1 MPa)
• Minimum Burst Pressure: 1,200 psi (8.3 MPa)
• Minimum Bend Radius: 4.1 in. (105mm)
• Weight: 0.23 lbs (0.10 kg)
• Temperature Range: -40° F to 212°F (-40°C to 100°C)
• Construction: Metal-free, peroxide-cured EPDM tube, synthetic fiber braid reinforcement, and flame-resistant EPDM cover
