Gasboy AtlasX 9862GX DEF Dispenser, Single Front Load For Cold Weather - 15 GPM

Description

Gasboy makes it simple to integrate the new AtlasX 9862G diesel exhaust fluid (DEF) dispensers into your fuel management system.

The AtlasX DEF dispenser comes in two models: Cold Weather and Warm Weather. The Cold Weather DEF dispenser is designed to prevent DEF freezing and crystallization with a heated cabinet. Gasboy DEF dispensers offer advanced data management capabilities, allowing customers to track and monitor DEF usage, inventory and other operational data for better management and decision-making. Gasboy DEF dispensers can be integrated into various types of DEF container systems based on their specific needs and preferences.

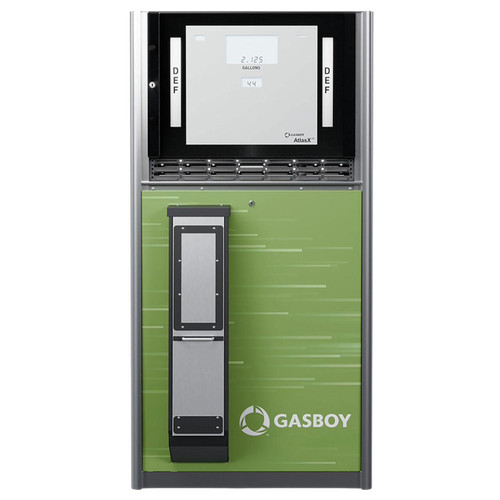

*Cold Weather DEF Model Pictured Both models have stainless steel hydraulics to protect against corrosion and use an innovative, Weight and Measures approved Krohne Magmeter which measures DEF accurately and reliably. Gasboy electronic DEF dispenser is equipped with advanced electronic metering technology, ensuring accurate and precise fuel measurements.

Features

• Best-in-class engineering: Krohne Magmeter delivers industry leading accuracy and comes equipped on both AtlasX DEF dispenser models
• Modern Design: Cold weather models are versatile and incorporate an improved heat-insulated cabinet with internal hose reel to protect from freezing and crystallization.
• Future-Proof: Modern Encore Electronics platform provides the foundation for future applications (remote diagnostics, remote software updates, secure payments etc.)
• 1 Year Warranty: Commercial and Retail Pumps and Dispensers are warranted against defects in material and workmanship for 12 months from date of installation or 24 months from date of original invoice, whichever occurs first

Specifications

• Brand: Gasboy
• Part Number: 9862GX-Z
• Type: Electric Dispenser
• Flow Rate: 15 GPM
• Working Pressure: 30 PSI
• Max Working Pressure: 50 PSI
• Unit of Measure: Gallons/Liters selectable
• Filters: Strainer
• Number of Hoses : 1
• Piping: 3/4 in. Internal fuel piping
• Discharge: 1 in. BSPP
• Nozzle Positions: Front load
• Inlet: 1 in. BSPP
• Heater: No Heater
• Housing: G30 galvanized steel 13GA
• Panels/Sheathing: Lockable removeable-precoated galvanized steel 2mm thick
• Junction Box: Field wiring junction box
• Computer/Register: Electronic register (volume only display)
• Meter: Krohne Magmeter Mass Flow Meter with electronic calibration
• Solenoid Valve: 3/4 in. 2-stage valve for Preset Operation (PP)
• Connectivity: 2 Wire Communication Protocol
• Environment: Warm Weather
• Temp Range : -22F (-30C) to 131F (55C)
• Solenod valve: 2-stage valve for preset operations (PP)
• Approvals: MET and cMET Listed W&M, NCWM, Measurement Canada (MC)
• Calibration: Electronic
• Pump models: GPU + gear pump
• Electronic display: LCD 6-digit money and volume, 4-digit PPU
• Power fail backup: Display retained 15 minutes
• HP: 1
• Voltage: 115/230 VAC
• Electrical Rating - Control Valves: 0.2A@120 VAC; 0.1A@ 240 VAC
• Electrical Rating - Electric Reset Motors: 2.2 A@ 120 VAC; 1.1A@ 240 VAC
• Electrical Rating - Lights : 1.0A@ 120 VAC 50/60 Hz;0.5A@ 240 VAC 50/60 Hz
• Electrical Rating - Pump Motor: 10 A@ 115 VAC 60 Hz;5.3 A@ 230 VAC 50 Hz
• Electrical Rating - DEF Heater: 8.5A@ 120 VAC
• Warranty: 12 Months - Parts and Labor
