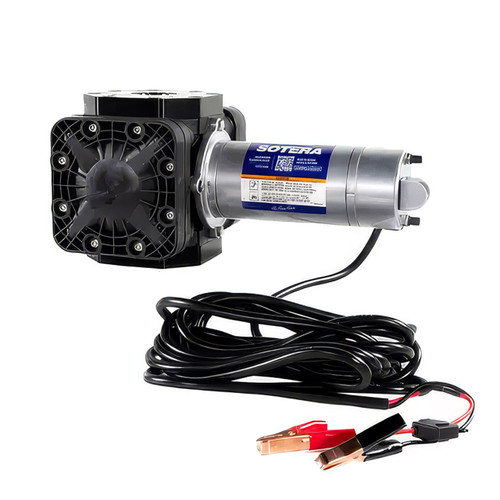

Fill-Rite FR205B-NXP 13 GPM Transfer Pump Bung Mount 24V DC

Description

The Sotera FR205B-NXP model is a 24V DC non-explosion proof transfer system designed for bulk transfer of wide range of industrial oils for a variety of applications such as hydraulic, power transmission, gear, turbine and compressor with a composition of either mineral, synthetic or semi-synthetic. The FR205B-NXP is a pump only model with a 2" NPT bung mount, perfect for direct mounting onto drums and barrels.

Features

• Consistent & Reliable Performance engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
• Durable Design pump can run dry without causing any internal damage, giving you peace of mind with your investment
• Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
• Convenient Configurations conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange

Specifications

• Max Flowrate: 13 GPM / 49 LPM
• Power Type: 24V DC
• Compatible Fluids: Gear Oils, Motor Oils, Light Oils, Hydraulic Oils, Transmission Fluid, Lube Oils
• Inlet Size: 1 in. Female NPT
• Outlet Size: 1 in. Female NPT
• Mounting Type: Bung Mount
• Duty Cycle (min): 30 min on / 30 min off
• Motor Power (HP): .25
• Suction Lift (ft.): 9 ft.
• Max Operating Pressure (PSI): 15 PSI
• Discharge Head (ft): 38 ft.
• Max Current (A): 10 A
• Operating Temperature Range: -4 - 122°F / -20 - 50°C
