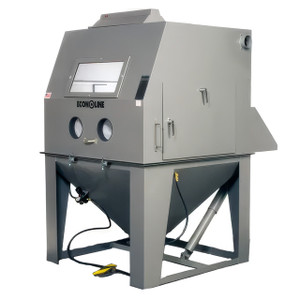

Econoline 36-1 Direct Pressure Blast Cabinet - 25 CFM

The Econoline 36-1 Direct Pressure Blast Cabinet (101694D-A) is a state-of-art pressure pot dry blast system designed for the high-volume shop seeking excellent control for blasting applications. These blast cabinets include a side mounted pressure pot for easy operation, holding up to 110 pounds of blast media for long uninterrupted blasting. Wide front and side doors allow for quick and easy placement and removal of objects. A convenient pressure control gauge and foot operated 25 CFM tungsten carbide blast nozzle reduce fatigue for the operator. Shop the JME site for the best selection of Econoline sand blast cabinets today.

Features

• The heavy-duty floor mount direct pressure cabinets deliver faster performance than siphon cabinets and use less compressed air.
• The blast cabinets give users more control at high and low pressures.
• The steel legs and cabinet can withstand constant use in high-production applications.

Specifications

• Weight: 334 lbs.
• Material: Steel
• Mounting Location: Floor
• Feed Type: Pressure
• Maximum Air Flow: 25 CFM
• Media Capacity: 100 lbs.
• Maximum Capacity: 110 lbs.
• Work Area Dimensions: 24 in. D x 36 in. W x 23 in. H
• Top Door Dimensions: 13 in. W x 36 in. H
• Window Dimensions: 24 in. W x 12 in. H
• Overall Dimensions: 25 in. D x 60 in. W x 65 in. H

Downloads

Specification Sheet (PDF Downloads)
