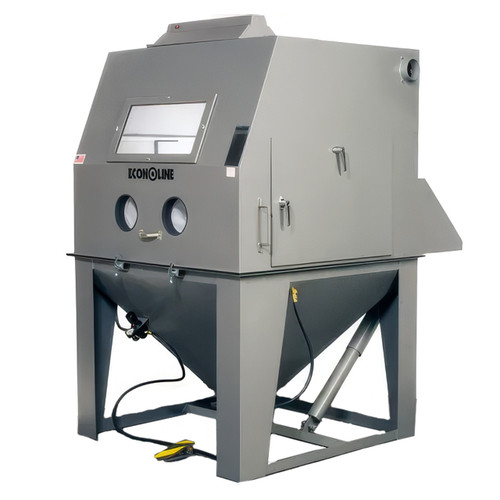

Econoline Direct Pressure Feed Blast Cabinet - 60 in. x 48 in.

The Econoline 60 in. x 48 in. Direct Pressure Blast Cabinet (101701WD-A) blast cabinet features a raised steel work platform for the operator and large window for easy viewing of your project overhead. The Oval arm ports help hold standard rubber cotton lined work gloves. Some additional standard features include regulator and gauge, LED lighting, a 14 and 11 gauge welded steel cabinet, tungsten carbide nozzle, moisture filter, media regulator, 1/2 in. internal diameter abrasive hose, foot pedal operation and ASME code pressure vessel with a 1 cubic foot capacity. Shop the JME site for the best selection of Econoline sand blast cabinets today.

Features

• Include regulator and gauge, LED lighting, a 14 and 11 gauge welded steel cabinet, tungsten carbide nozzle, moisture filter, media regulator, 1/2 in. internal diameter abrasive hose, foot pedal operation and ASME code pressure vessel with a 1 cubic foot capacity.
• Oval arm ports hold standard rubber cotton lined work gloves.
• The steel legs and cabinet can withstand constant use in high-production applications.

Specifications

• Weight: 958 lbs.
• Material: Steel
• Mounting Location: Floor
• Feed Type: Foot Operated
• Maximum Air Flow: 15 CFM
• Light Type: Fluorescent
• Color: Gray
• Maximum Capacity: 110 lbs.
• Voltage: 110 V
• Pressure: 80 PSI
• Work Area Dimensions: 48 in. D x 60 in. W x 40 in. H
• Window Dimensions: 24 in. W x 12 in. H
• Overall Dimensions: 96 in. D x 63 in. W x 108 in. H

Downloads

Specification Sheet (PDF Downloads)
