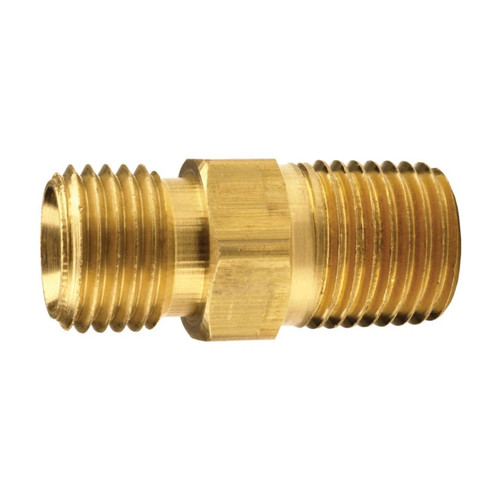

Dixon 1720404C 1/4 in. NPSM x 1/4 in. NPTF Brass Male Union

Dixon 1720404C 1/4 in. NPSM x 1/4 in. NPTF Brass Male Union

The Dixon 1720404C Brass Male Union is a precision-machined fitting designed to connect 1/4 inch NPSM and 1/4 inch NPTF male threads in fluid and air handling systems. Constructed from high-quality brass, this union offers excellent corrosion resistance and mechanical durability. With a hex size of 9/16 inch and a length of 1.25 inches, it provides a secure and compact connection ideal for industrial, pneumatic, and hydraulic applications. Its dual-thread compatibility ensures versatility across a wide range of systems requiring reliable and leak-resistant fittings.

Features

• Dual Thread Compatibility: Connects 1/4 inch NPSM to 1/4 inch NPTF male threads for versatile system integration.
• Durable Brass Construction: Made from corrosion-resistant brass for long-lasting performance in demanding environments.
• Compact and Efficient Design: Measures 1.25 inches in length with a 9/16 inch hex for easy installation in tight spaces.
• Leak-Resistant Seal: Precision-machined threads ensure a secure and reliable connection.

Specifications

• Hex: 9/16 in.
• Length: 1.25 in.
• Male Thread: NPSM, NPTF
• Male Thread Size: 1/4 in.
• Material: Brass
• Size: 1/4 in. NPSM x 1/4 in. NPTF

Downloads

Specifications Sheet (PDF Download)

Dimensional Drawing (PDF Download)

Material Safety Data Sheet (MSDS) (PDF Download)

Material Safety Data Sheet (Brass) (PDF Download)

Data Sheet (PDF Download)
