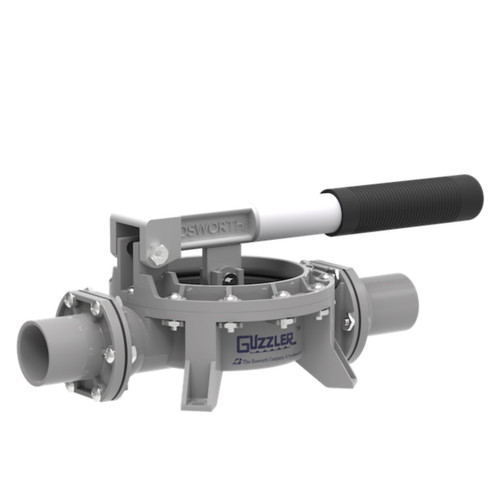

Bosworth GH-0500D Horizontal Guzzler 1 1/2 in. MNPT Hand Pump

Bosworth GH-0500D Horizontal Guzzler 1 1/2 in. MNPT Hand Pump Description

The Bosworth GH‑0500D Guzzler® Hand Pump is a durable, high‑capacity manual diaphragm pump designed for efficient liquid transfer in marine, industrial, and utility applications. Constructed from lightweight acetal plastic, this pump offers excellent corrosion resistance and long service life while supporting demanding operational environments. Delivering up to 12 gallons per minute at 90 strokes per minute, the GH‑0500D accommodates hose sizes from 1‑1/4 inches to 2 inches and features 1‑1/2 inch MNPT inlet and outlet connections for secure threaded installation. The horizontal aluminum handle provides smooth up‑and‑down pumping action, while the adjustable clamp ring allows the handle to be positioned in twelve different orientations for flexible installation and ergonomic use. Optional aluminum clamp ring upgrades enhance durability for high‑use applications.

Features

• High‑Capacity Manual Pumping: Delivers up to 12 GPM for efficient fluid transfer.
• Durable Acetal Construction: Lightweight body resists corrosion and wear.
• Horizontal Aluminum Handle: Designed for smooth, controlled up‑and‑down operation.
• Adjustable Handle Orientation: Clamp ring allows twelve different handle positions.
• Threaded Hose Connections: 1‑1/2 in. MNPT ports support secure plumbing connections.
• Wide Hose Compatibility: Accommodates hose sizes from 1‑1/4 in. to 2 in.
• Optional Reinforcement: Aluminum clamp ring options available for added durability.

Specifications

• Body Material: Acetal (POM) copolymer
• Clamp Ring Material: Acetal
• Clevis/Button Assembly: Acetal plastic
• Diaphragm Material:  Nitrile
• Flow Rate: 12 GPM
• Handle Material: Aluminum
• Handle Style: Horizontal Head: 30 ft.
• Hose Connection Size: 1‑1/2 in. MNPT (inlet and outlet)
• Internal Spring: None Lift: 12 ft.; 22 ft. with check valve
• Max Pressure: 15 psi
• Max Service Temperature: 212°F (100°C)
• Pump Type: Manual diaphragm hand pump
• Valves: Flapper (Nitrile)
• Weight: 1.80 lb.

Downloads

Specifications Sheet (PDF Download)
