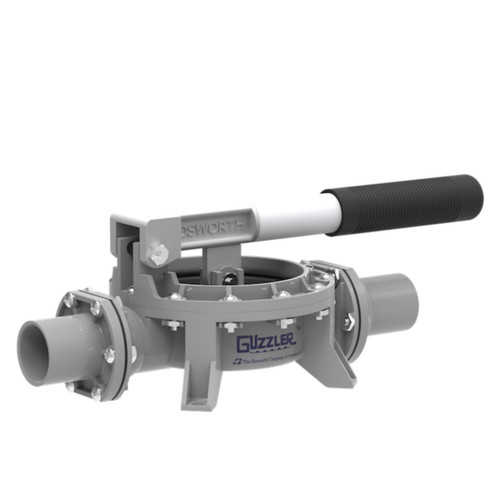

Bosworth GH-0500D Guzzler 1 1/2 in. Horizontal Hand Pump

Bosworth GH-0500D Guzzler 1 1/2 in. Horizontal Hand Pump Description

The Bosworth GH‑0500D Guzzler® Horizontal Hand Pump is a high‑capacity manual diaphragm pump designed for efficient liquid transfer in marine, industrial, and utility applications. Constructed from durable, lightweight acetal plastic, this pump offers strong corrosion resistance while maintaining dependable performance in demanding environments. Capable of delivering up to 12 gallons per minute at 90 strokes per minute, the GH‑0500D accommodates hose sizes from 1‑1/4 inches to 2 inches. The horizontal aluminum handle provides smooth up‑and‑down pumping action, while the adjustable clamp ring allows the handle to be positioned in twelve different orientations for flexible installation and ergonomic operation. Optional aluminum clamp ring upgrades are available for increased durability under heavy use.

Features

• High‑Capacity Output: Provides up to 12 GPM for efficient manual pumping.
• Durable Acetal Construction: Lightweight body resists corrosion and wear.
• Horizontal Aluminum Handle: Supports smooth, controlled up‑and‑down pumping action.
• Adjustable Handle Orientation: Clamp ring allows twelve different handle positions.
• Wide Hose Compatibility: Accommodates hose sizes from 1‑1/4 in. to 2 in.
• Optional Reinforcement: Aluminum clamp ring options available for added durability.

Specifications

• Body Material: Acetal (POM) copolymer
• Clamp Ring Material: Acetal
• Clevis/Button Assembly: Acetal plastic
• Diaphragm Material: Nitrile
• Flow Rate: 12 GPM
• Handle Material: Aluminum
• Handle Style: Horizontal
• Head: 30 ft.
• Hose Connection Size: 1‑1/2 in. smooth (inlet and outlet)
• Internal Spring: None
• Lift: 12 ft.; 22 ft. with check valve
• Max Pressure: 15 psi
• Max Service Temperature: 212°F (100°C)
• Pump Type: Manual diaphragm hand pump
• Valves: Flapper (Nitrile)
• Weight: 1.80 lb.

Downloads

Specifications Sheet (PDF Download)
