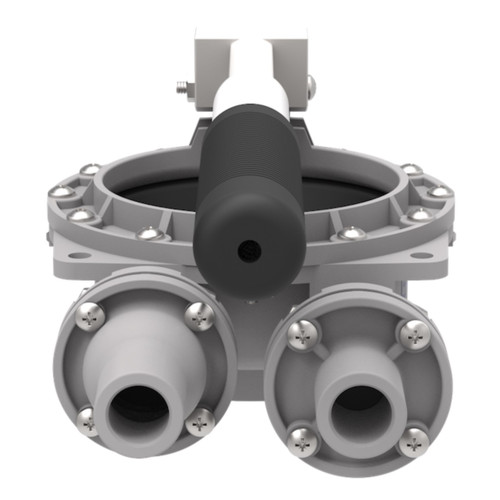

Bosworth GH-0450D Guzzler 1 in. 10 GPM Same Side Horizontal Hand Pump

Bosworth GH-0450D Guzzler 1 in. 10 GPM Same Side Horizontal Hand Pump Description

The Bosworth GH‑0450D Guzzler® Same‑Side Horizontal Hand Pump is designed for reliable manual fluid transfer where space is limited and efficient performance is required. Constructed from durable, lightweight acetal plastic, this pump delivers long service life and corrosion resistance in marine, industrial, and utility applications. The same‑side inlet and outlet port configuration simplifies hose routing in close‑fitting installations, while the horizontal aluminum handle provides smooth up‑and‑down pumping action. With a flow rate of up to 10 gallons per minute at 90 strokes per minute, this pump supports a wide range of hose sizes and offers flexible installation through an adjustable clamp ring that allows twelve handle orientations.

Features

• Same‑Side Port Configuration: Inlet and outlet on the same side optimize installation in confined spaces.
• High Manual Output: Produces up to 10 GPM for efficient hand‑operated pumping.
• Durable Acetal Construction: Lightweight acetal body resists corrosion and wear.
• Horizontal Aluminum Handle: Designed for controlled up‑and‑down pumping action.
• Adjustable Clamp Ring: Allows twelve different handle positioning options.
• Wide Hose Compatibility: Accommodates hose sizes from 1/2 in. to 1‑1/4 in.
• Optional Durability Upgrades: Aluminum clamp ring options available for reinforced operation.

Specifications

• Body Material: Acetal (POM) Copolymer
• Clamp Ring Material: Acetal
• Clevis/Button Assembly: Acetal Plastic
• Diaphragm Material: Nitrile
• Flow Rate: 10 GPM
• Handle Material: Aluminum
• Handle Style: Horizontal
• Head: 30 ft.
• Hose Connection Size: 1 in. Smooth (Inlet And Outlet)
• Internal Spring: None
• Lift: 12 ft.; 22 ft. With Check Valve
• Max Pressure: 15 psi
• Max Service Temperature: 212°F (100°C)
• Pump Type: Manual Diaphragm Hand Pump
• Valves: Duckbill (Nitrile)
• Weight: 1.85 lb.

Downloads

Specifications Sheet (PDF Download)
