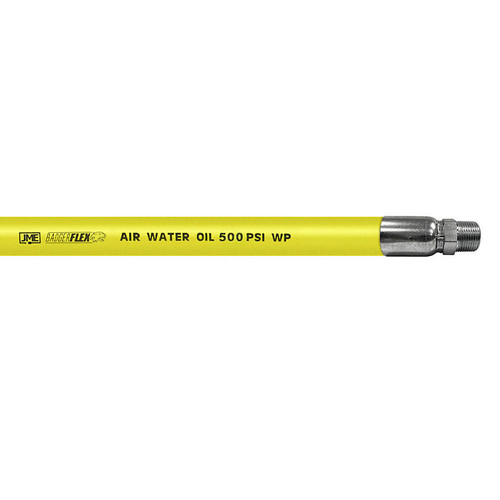

BadgerFlex 3/8 in. Air & Multipurpose Hose Assembly w/ Crimped Male NPT Ends - Yellow

BadgerFlex 3/8 in. Air & Multipurpose Hose Assembly with Crimped Male NPT Ends

The BadgerFlex 3/8 in. Air & Multipurpose Hose Assembly is engineered for demanding air, water, and oil applications where durability and flexibility are required. Constructed with a high-quality NBR tube and reinforced textile plies, this hose delivers dependable performance in severe service environments such as construction, mining, air drilling, and industrial operations. The abrasion-resistant yellow NBR/PVC cover enhances visibility and longevity, while factory-crimped male NPT ends provide secure, leak-resistant connections. Designed to handle high working pressures and a wide temperature range, this hose assembly is well suited for rugged, everyday use in industrial settings.

Features

• Abrasion-Resistant Cover: Yellow NBR/PVC cover enhances durability and service life.
• High Pressure Rating: Rated for 500 PSI working pressure for air and multipurpose applications.
• Reinforced Construction: Textile plies provide added strength and flexibility.
• Secure Hose Assembly: Crimped male NPT ends ensure reliable, leak-resistant connections.
• Wide Temperature Capability: Suitable for use in both high and low temperature environments.

Specifications

• Applications: Air, Water, Oil
• Brand: BadgerFlex
• Burst Pressure: 2000 PSI (137.8 BAR)
• Color: Yellow
• Cover Material: NBR/PVC
• Ends: Crimped Male NPT
• Inner Diameter: 3/8 in.
• Outer Diameter: 0.75 in.
• Part Number: ABFH500YEL038X10MXM
• Reinforcement: Textile Plies
• Safety Factor: 4:1
• Temperature Range: -22°F to 212°F (-30°C to 100°C)
• Tube Material: NBR
• Weight Per Foot: 0.79 lb.
• Working Pressure: 500 PSI (34.4 BAR)
